Transmission Fluid Cooling System - 6R100

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

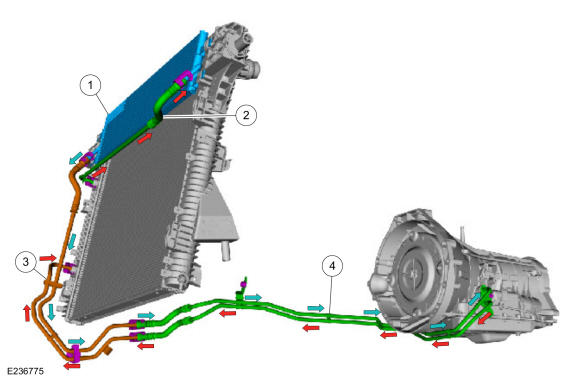

GFD409171Courtesy of FORD MOTOR COMPANY
Item Description
1 Transmission fluid auxiliary cooler
2 Transmission fluid cooler-to-transmission fluid auxiliary cooler tube
3 Front transmission fluid cooler tube assembly
4 Transmission fluid cooler tube assembly
