Transmission Fluid Cooler Coolant Thermostat: Removal
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM Color Coding
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
-
NOTE: Be prepared to collect escaping fluid.

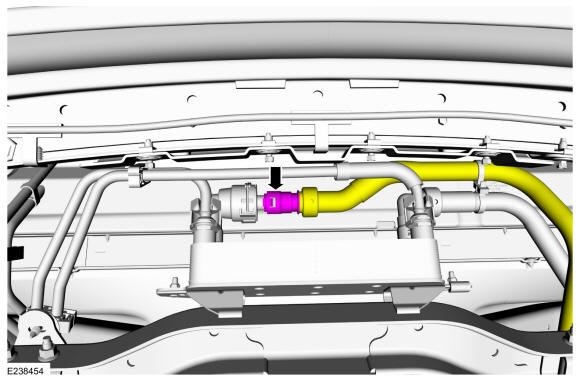

Release the quick connect coupling and disconnect transmission fluid cooler outlet hose.

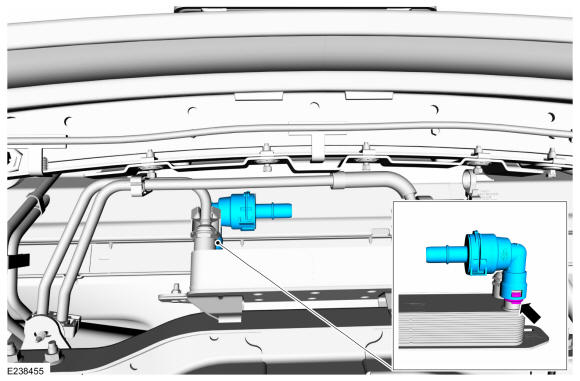

- Release the quick connect coupling and remove the thermostat assembly.
