Removal And Installation: Thermostat: Removal
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM Color Coding
NOTE:
Removal steps in this procedure may contain installation details.
- Drain the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .

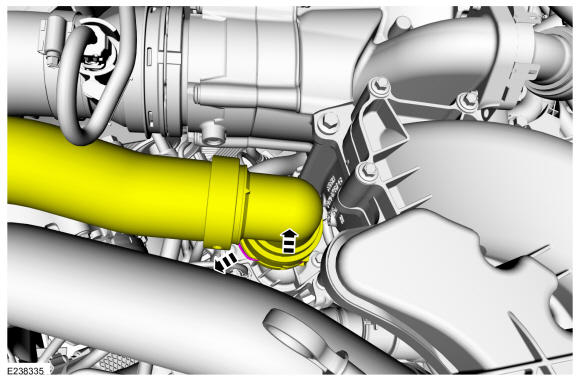

- Pull the upper radiator hose spring clip until the end of the clip is in the detent on the quick connect coupling and disconnect the upper radiator hose.

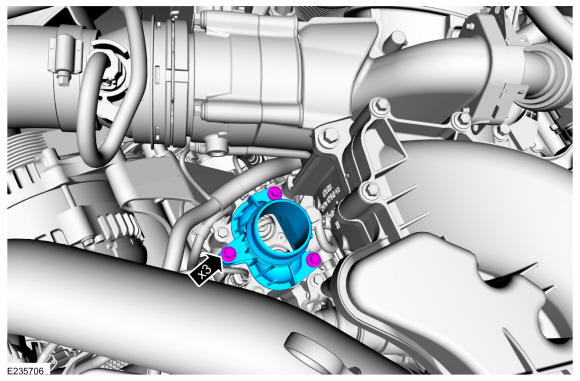

- Remove the bolts and the coolant outlet connection.
Torque: 89 lb.in (10 Nm)

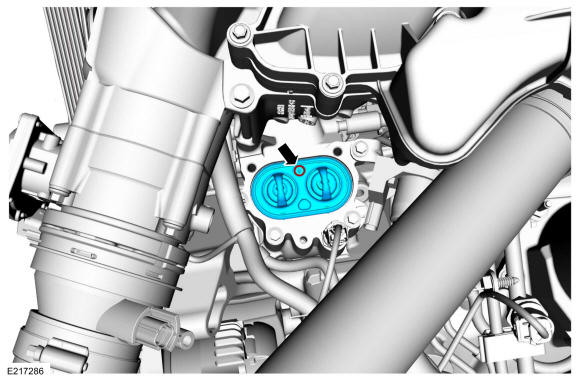

NOTE: During installation verify the thermostat vent hole is at the 12 o'clock position. - Remove the thermostat assembly.
