Removal And Installation: Radiator: Removal
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- Drain the primary cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
- Remove the powertrain secondary cooling radiator. Refer to: Radiator .
- Remove the upper cooling fan shroud. Refer to: Cooling Fan Upper Shroud .

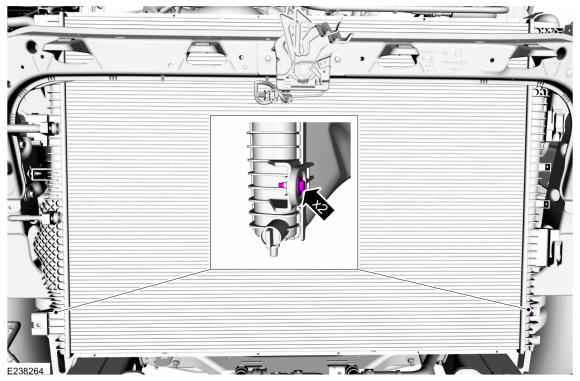

- Remove the lower cooling fan shroud bolts.
Torque: 62 lb.in (7 Nm)

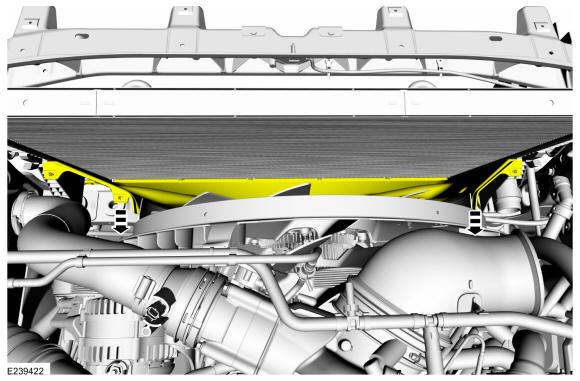

- Position the lower cooling fan shroud rearward towards the cooling fan stator.

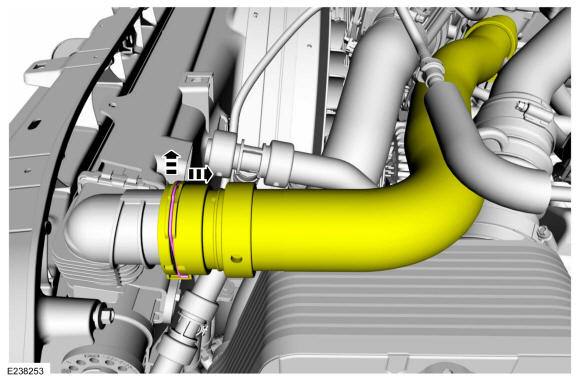

- Pull the upper radiator hose spring clip until the end of the clip is in the detent on the quick connect coupling and disconnect the upper radiator hose.

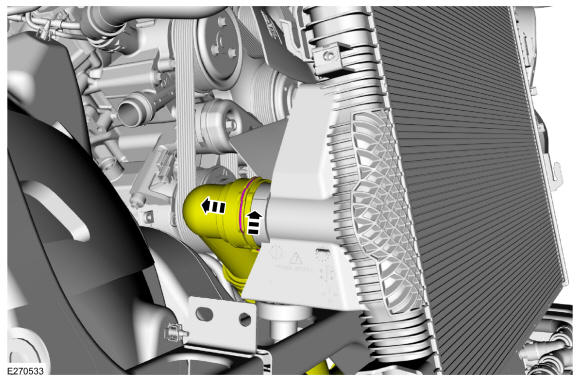

- Pull the lower radiator hose spring clip up until the end of the clip is in the detent on the quick connect coupling and disconnect the lower radiator hose.

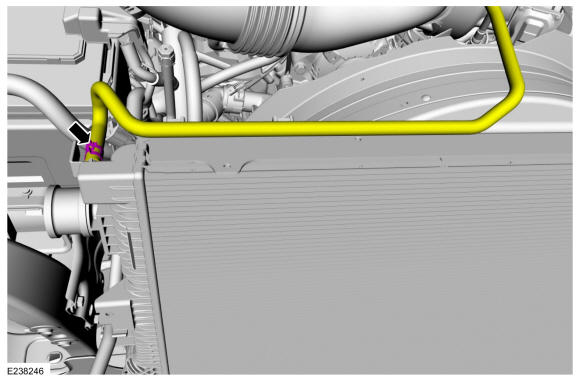

- Release the clamp and disconnect the radiator overflow hose. Use the General Equipment: Hose Clamp Remover/Installer

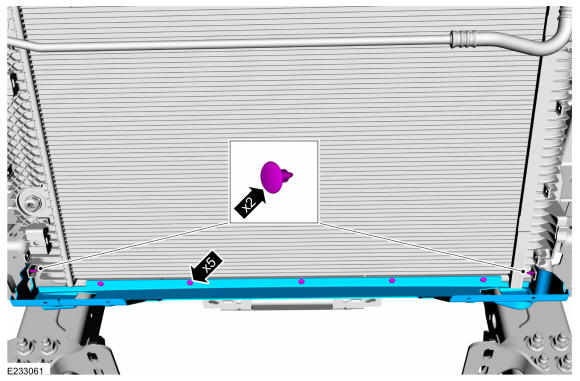

- Remove the push-pins and the lower air deflector.

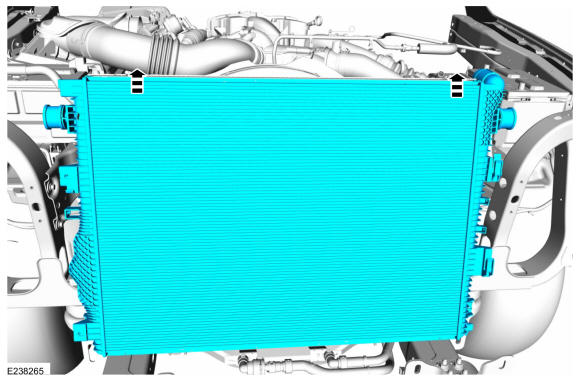

- Remove the radiator.
