Cooling Fan Stator: Removal
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM Color Coding
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the cooling fan. Refer to: Cooling Fan .
- Detach the retainers from the cooling fan stator.
-
NOTE: Rotate the cooling fan stator as necessary to release the cooling fan stator from the lower cooling fan shroud.

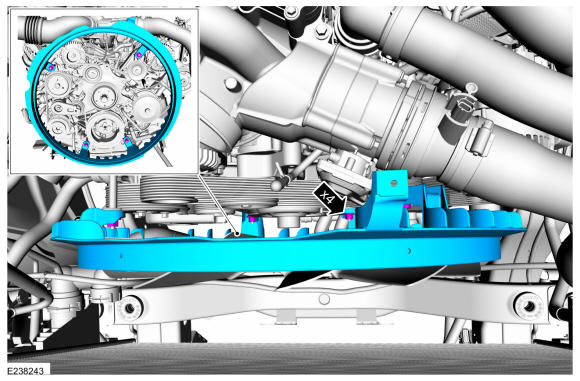

Remove the nuts and the cooling fan stator.
Torque: 150 lb.in (17 Nm)
