Coolant Crossover Manifold: Installation
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

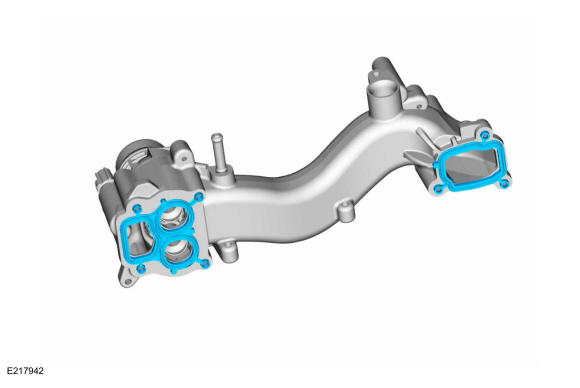

- Install a new O-ring seal and lubricate it with clean engine coolant.
Material: Motorcraft® Yellow Prediluted Antifreeze/Coolant / VC-13DL-G (WSS-M97B57-A2)
- Install new gaskets.
- To install, reverse the removal procedure.NOTE: Evaluate the cooling system condition before filling the cooling system. Failure to follow these instructions can damage the engine.
- Evaluate the cooling system condition. Refer to: Engine Cooling System Condition Evaluation .
