Engine - Body Off

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

Special Tool(s) / General Equipment

GFD406989Courtesy of FORD MOTOR COMPANY
303-050 (T70P-6000) Lifting Bracket, Engine
GFD406990Courtesy of FORD MOTOR COMPANY
303-1518 Bracket, Engine Removal TKIT-2009C-F TKIT-2009C-ROW
GFD406991Courtesy of FORD MOTOR COMPANY
307-346 (T97T-7902-A) Retainer, Torque Converter TKIT-1998-LM (NavigatoR) TKIT-1997-F/FLM/LT
Floor Crane
Oil Drain Equipment
Transmission Jack
NOTE: Change the engine oil any time the turbocharger is removed from the engine. The passages in the block, located underneath the turbocharger, are direct passages to the lubrication system. Debris and/or coolant may enter the lubrication system and engine damage may occur.
NOTE: It is recommended that this component be serviced with the vehicle body removed. Refer to BODY - 6.7L POWER STROKE DIESEL . If the body cannot be removed, refer to Engine - Body On  .
NOTE: During the repair or installation of fuel-related components, cap, tape or otherwise appropriately protect all fuel openings to prevent the ingress of dirt or other contamination. Remove caps, tape and other protective materials prior to installation.
  1. WARNING: Do not work on the fuel system until the pressure has been released and the engine has cooled. Fuel in the high-pressure fuel system is hot and under very high pressure. High-pressure fuel may cause cuts and contact with hot fuel may cause burns. Failure to follow these instructions may result in serious personal injury.

    Refer to: Fuel System Pressure Release .

  2. Refer to: Body - 6.7L Power Stroke Diesel .
  3. Mark the location of the tires on the floor prior to rolling out the chassis. Roll the chassis out from under the body.

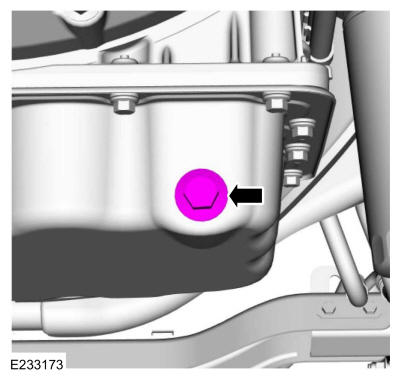

  4. Remove the oil pan plug and drain the engine oil. Use the General Equipment: Oil Drain Equipment

    Torque: 19 lb.ft (26 Nm)

    GFD406992Courtesy of FORD MOTOR COMPANY

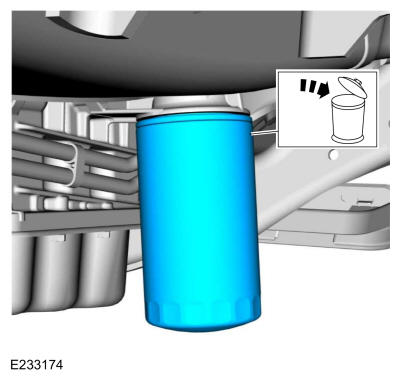

  5. Remove and discard the oil filter. Use the General Equipment: Oil Drain Equipment
    GFD406993Courtesy of FORD MOTOR COMPANY

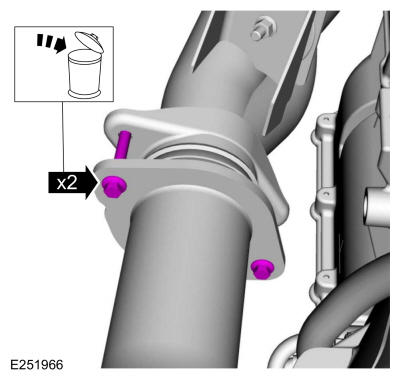

  6. Remove and discard the exhaust downpipe bolts.
    GFD406994Courtesy of FORD MOTOR COMPANY

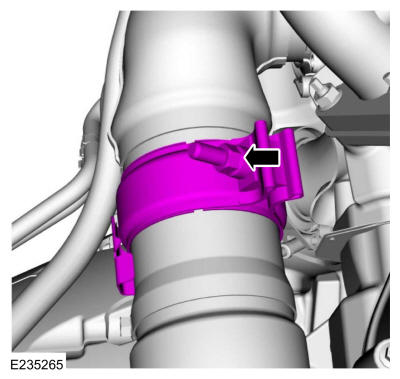

  7. Loosen the clamp for the exhaust downpipe.
    GFD406995Courtesy of FORD MOTOR COMPANY

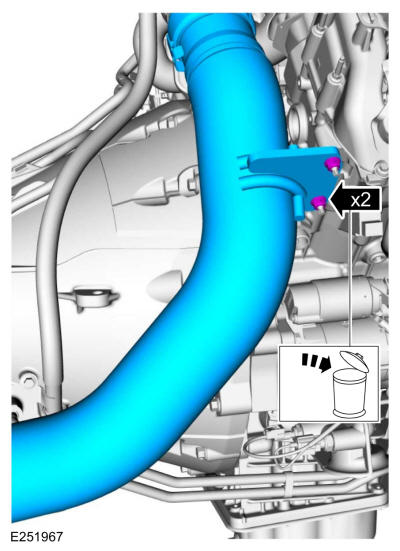

  8. Remove and discard the nuts. Remove the exhaust downpipe.
    GFD406996Courtesy of FORD MOTOR COMPANY

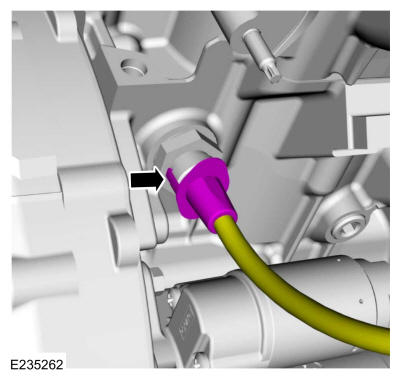

  9. If equipped, disconnect the block heater electrical connector.
    GFD406997Courtesy of FORD MOTOR COMPANY

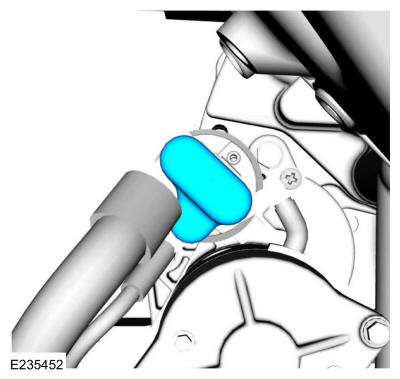

  10. Remove the starter cable cover.
    GFD406998Courtesy of FORD MOTOR COMPANY

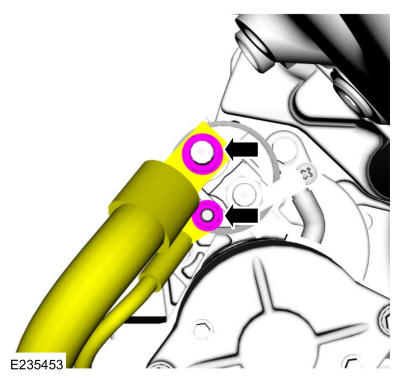

  11. Remove the nuts and position aside the starter cables.
    GFD406999Courtesy of FORD MOTOR COMPANY

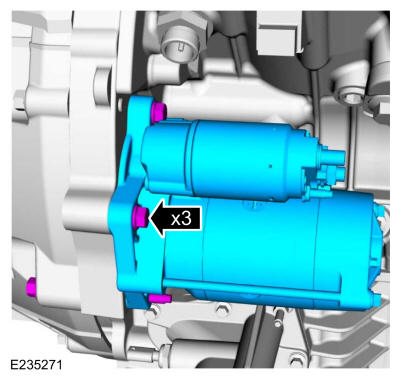

  12. Remove the bolts and the starter.
    GFD407000Courtesy of FORD MOTOR COMPANY

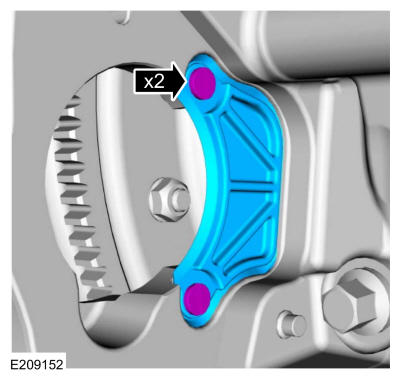

  13. Remove the retainers and the access cover.
    GFD407001Courtesy of FORD MOTOR COMPANY

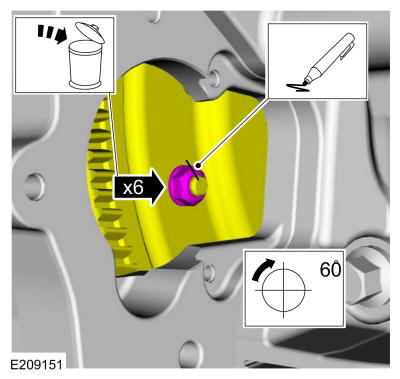

  14. NOTE: Index-mark the end of one torque converter stud and the flexplate for installation.
    NOTE: Using the crankshaft pulley bolts, turn the engine clockwise.

    Remove and discard the torque converter nuts.

    GFD407002Courtesy of FORD MOTOR COMPANY

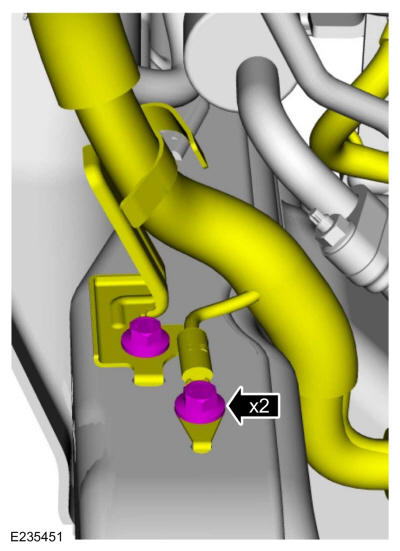

  15. Remove the engine wire harness bracket bolt and the ground wire bolt. Position the wire harness on the engine.
    GFD407003Courtesy of FORD MOTOR COMPANY

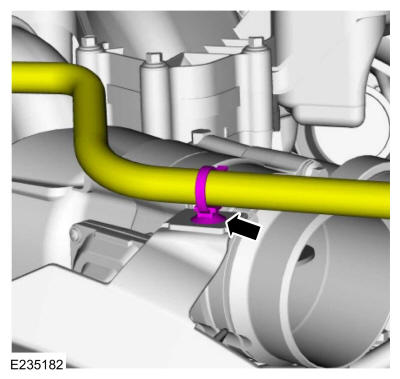

  16. Disconnect the coolant hose retainer from the cooling fan stator.
    GFD407004Courtesy of FORD MOTOR COMPANY

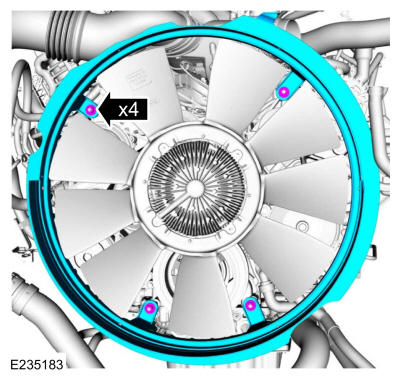

  17. Remove the nuts and the cooling fan stator.
    GFD407005Courtesy of FORD MOTOR COMPANY

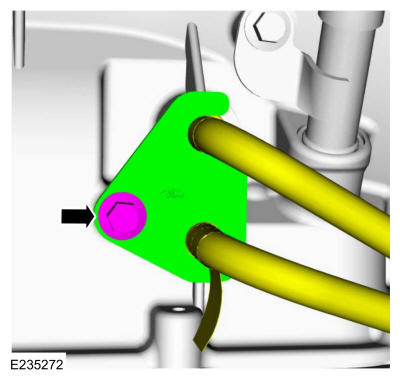

  18. Remove the bolt and position out the transmission cooling tubes.
    GFD407006Courtesy of FORD MOTOR COMPANY

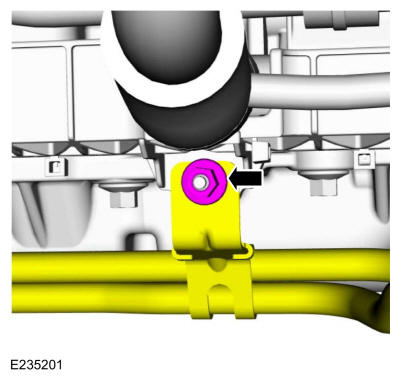

  19. Remove the transmission cooler tube bracket nut from the RH side of the engine and position the transmission cooler tubes aside.
    GFD406949Courtesy of FORD MOTOR COMPANY

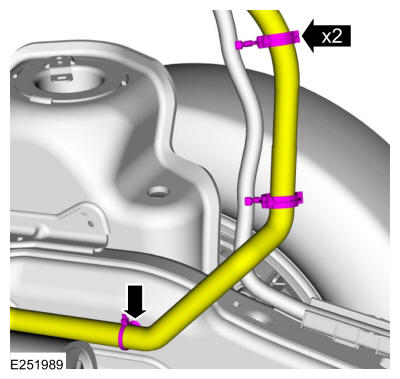

  20. Disconnect the heater hose from the retainers. Disconnect the heater hose retainer from the frame.
    GFD407007Courtesy of FORD MOTOR COMPANY

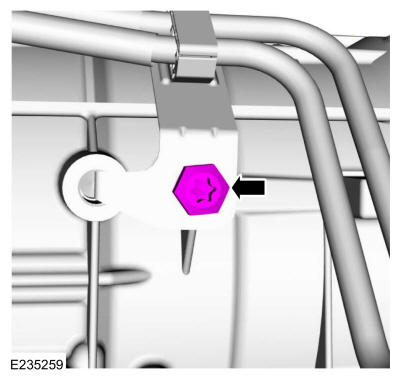

  21. Remove the fuel tube bracket bolt from the LH side of the transmission.
    GFD407008Courtesy of FORD MOTOR COMPANY

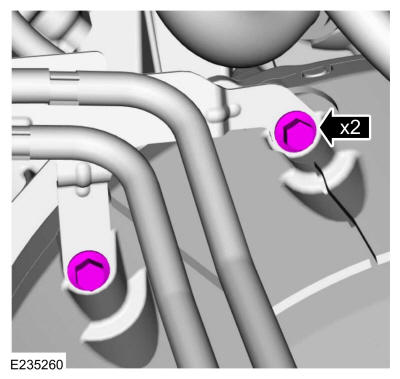

  22. Remove the fuel tube bracket bolts from the transmission bellhousing.
    GFD407009Courtesy of FORD MOTOR COMPANY

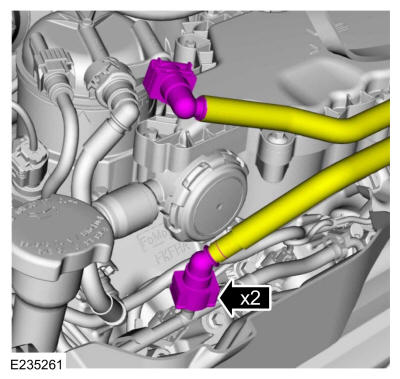

  23. NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. To prevent fuel system damage, it is essential that absolute cleanliness is observed when working with these components.

    Disconnect the fuel tubes and position aside. Refer to: Quick Release Coupling .

    GFD407010Courtesy of FORD MOTOR COMPANY

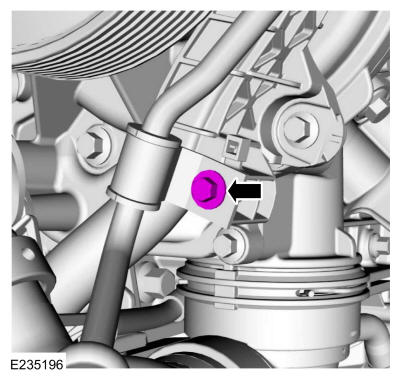

  24. Remove the retainer from the power steering line bracket.
    GFD407011Courtesy of FORD MOTOR COMPANY

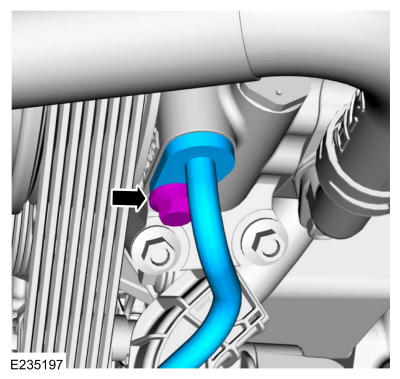

  25. Remove the bolt and the power steering hose.
    GFD407012Courtesy of FORD MOTOR COMPANY
  26. Remove and discard the power steering tube O-ring seals.
    GFD407013Courtesy of FORD MOTOR COMPANY

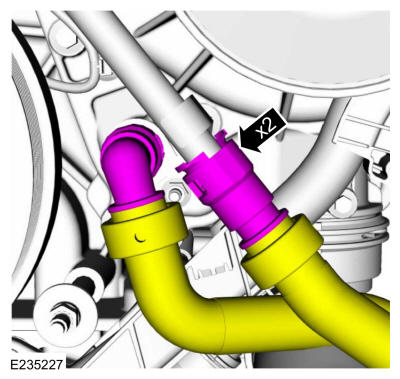

  27. Disconnect the coolant hoses from the engine front cover tubes.
    GFD407014Courtesy of FORD MOTOR COMPANY

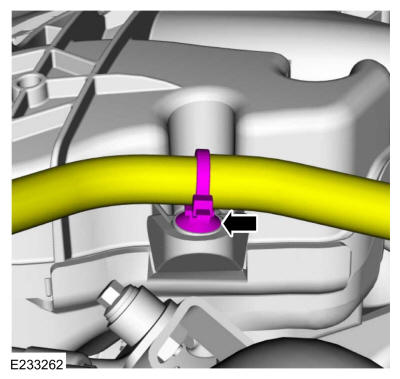

  28. Disconnect the retainer from the upper intake manifold.
    GFD406940Courtesy of FORD MOTOR COMPANY

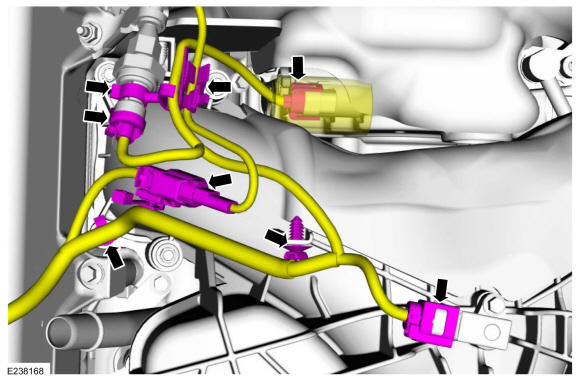

    • Disconnect the wiring harness retainers.

    • Disconnect the MAP sensor, EP (exhaust pressure) sensor, EGRT sensor and the turbocharger actuator electrical connectors.

    GFD407015Courtesy of FORD MOTOR COMPANY

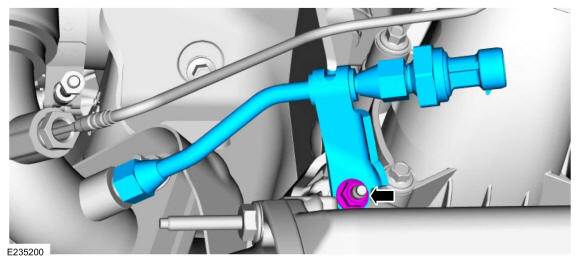

    • Remove the nut for the EP sensor tube.

    • Remove the EP sensor tube assembly.

    GFD407016Courtesy of FORD MOTOR COMPANY

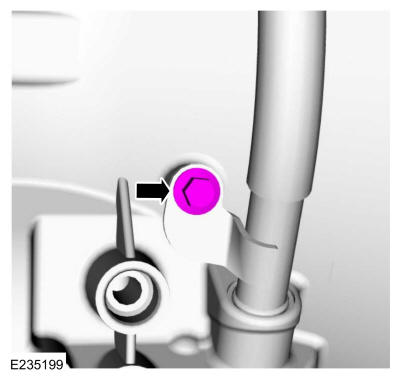

  29. Remove the bolt for the transmission fluid level indicator tube.
    GFD407017Courtesy of FORD MOTOR COMPANY

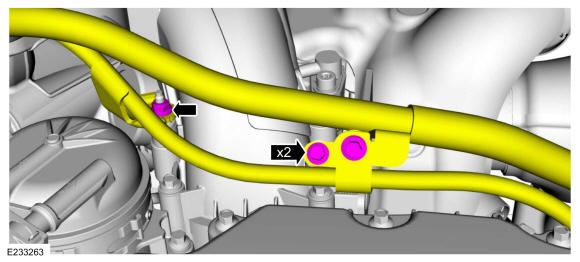

    • Remove the engine and transmission oil level indicator tube bolts.

    • Remove the nut and position aside the tubes.

    GFD407018Courtesy of FORD MOTOR COMPANY

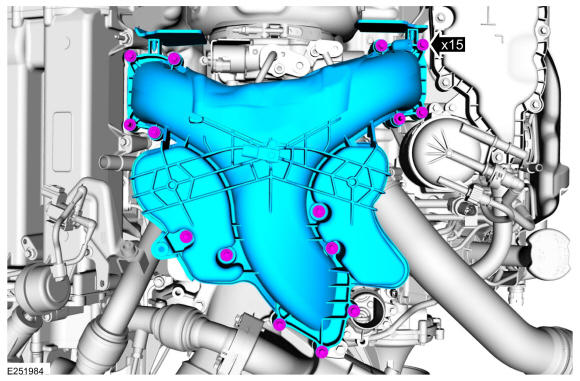

  30. NOTE: Cover or tape openings on the valve covers and lower intake manifold.

    Loosen the retainers and remove the upper intake manifold.

    GFD407019Courtesy of FORD MOTOR COMPANY

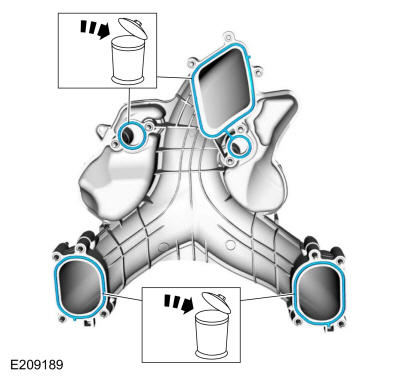

  31. Remove and discard the upper intake manifold gaskets.
    GFD407020Courtesy of FORD MOTOR COMPANY

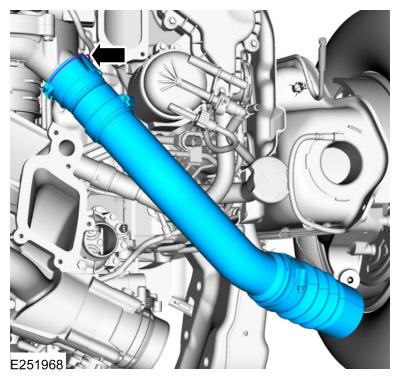

  32. Release the clip and remove the CAC pipe.
    GFD407021Courtesy of FORD MOTOR COMPANY

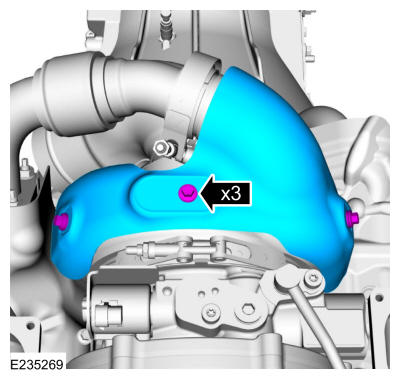

  33. Remove the bolts and the turbocharger heat shield.
    GFD407022Courtesy of FORD MOTOR COMPANY

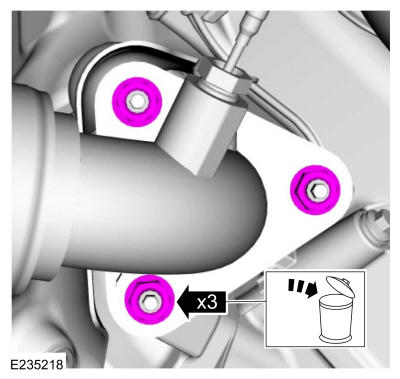

  34. NOTE: Do not bend or twist the turbocharger inlet pipes or damage to the bellows on the turbocharger inlet pipes may occur.

    Remove and discard the RH turbocharger inlet pipe nuts.

    GFD407023Courtesy of FORD MOTOR COMPANY

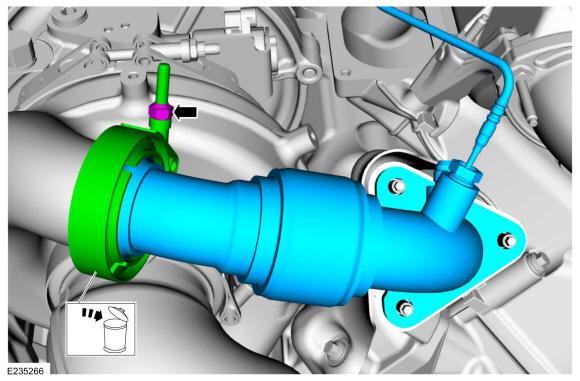

  35. NOTE: Do not bend or twist the turbocharger inlet pipes or damage to the bellows on the turbocharger inlet pipes may occur.

    • Loosen the RH turbocharger inlet pipe clamp and remove the RH turbocharger inlet pipe.

    • Remove and discard the clamp.

    GFD407024Courtesy of FORD MOTOR COMPANY

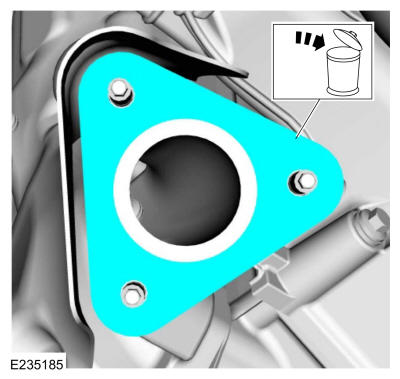

  36. Remove the discard the RH turbocharger inlet pipe gasket.
    GFD407025Courtesy of FORD MOTOR COMPANY

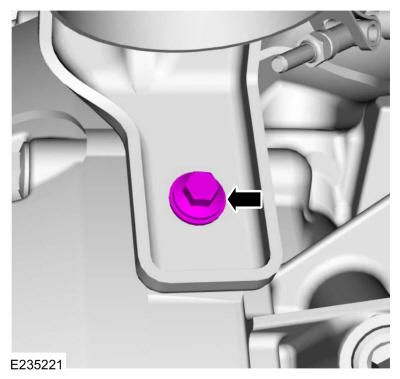

  37. Remove the bolt for the turbocharger outlet pipe.
    GFD407026Courtesy of FORD MOTOR COMPANY

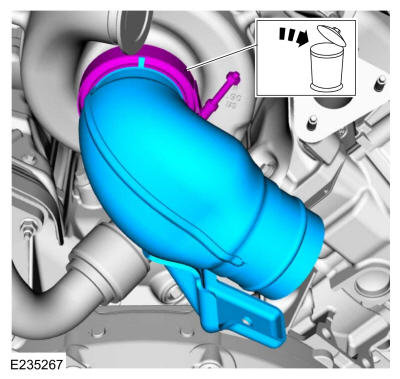

  38. Remove the clamp and the turbocharger outlet pipe. Discard the clamp.
    GFD407027Courtesy of FORD MOTOR COMPANY

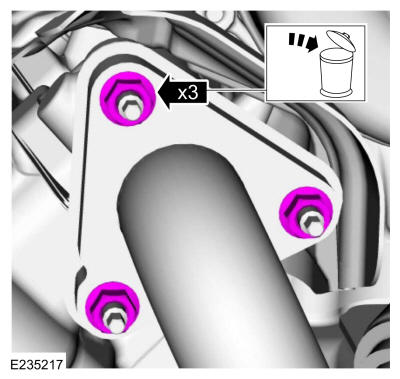

  39. NOTE: Do not bend or twist the turbocharger inlet pipes or damage to the bellows on the turbocharger inlet pipes may occur.

    Remove and discard the LH turbocharger inlet pipe nuts.

    GFD407028Courtesy of FORD MOTOR COMPANY

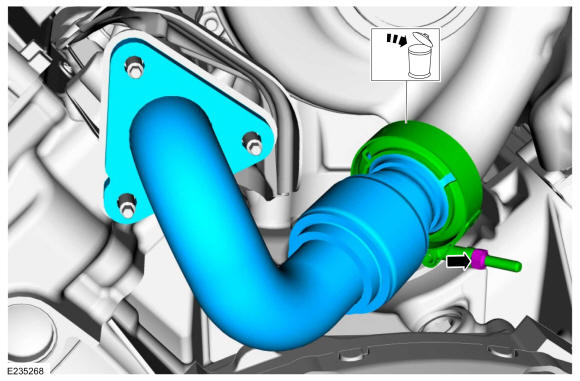

  40. NOTE: Do not bend or twist the turbocharger inlet pipes or damage to the bellows on the turbocharger inlet pipes may occur.

    • Loosen the LH turbocharger inlet pipe clamp and remove the LH turbocharger inlet pipe.

    • Remove and discard the clamp.

    GFD407029Courtesy of FORD MOTOR COMPANY

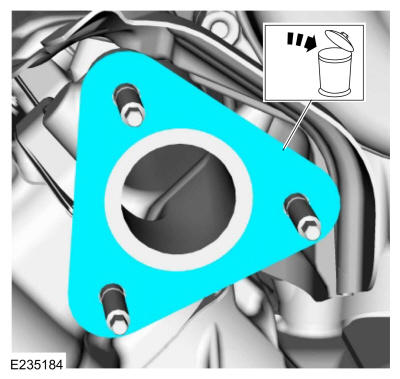

  41. Remove the discard the LH turbocharger inlet pipe gasket.
    GFD407030Courtesy of FORD MOTOR COMPANY

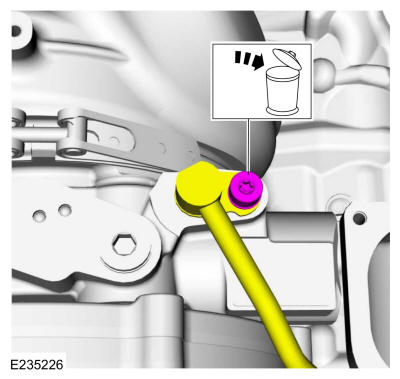

  42. Remove and discard the bolt for the turbocharger coolant outlet tube.
    GFD407031Courtesy of FORD MOTOR COMPANY

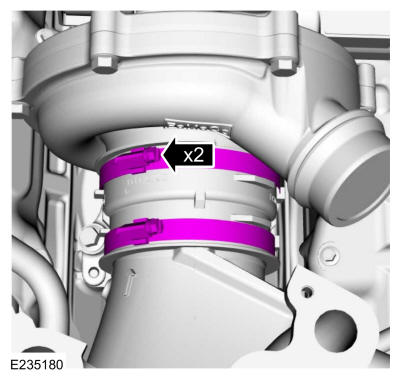

  43. Loosen the turbocharger inlet boot clamps.
    GFD407032Courtesy of FORD MOTOR COMPANY

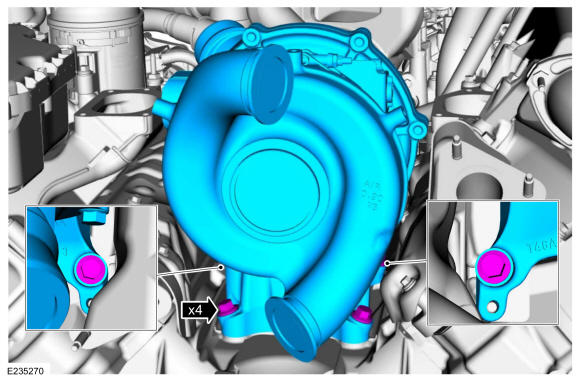

    • NOTE: The turbocharger mounting bolts are torque-to-yield design and cannot be reused.
      NOTE: Lift the turbocharger off of the locating dowels before positioning rearward for removal.

      Remove and discard the turbocharger mounting bolts.

    • Remove the turbocharger.

    GFD407033Courtesy of FORD MOTOR COMPANY

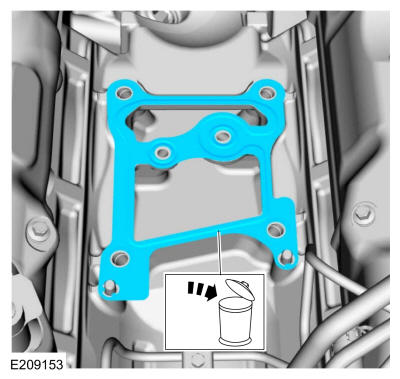

  44. Remove and discard the turbocharger mounting gasket.
    GFD407034Courtesy of FORD MOTOR COMPANY

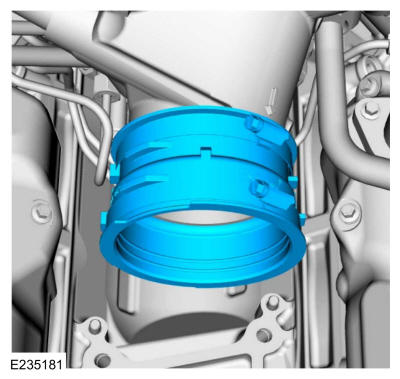

  45. Remove the turbocharger inlet boot.
    GFD407035Courtesy of FORD MOTOR COMPANY

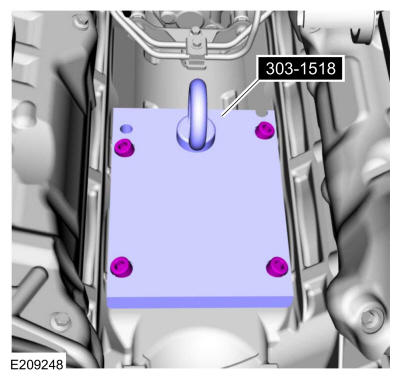

  46. Install Special Service Tool: 303-1518 Bracket, Engine Removal.

    Torque: 41 lb.ft (55 Nm)

    GFD407036Courtesy of FORD MOTOR COMPANY

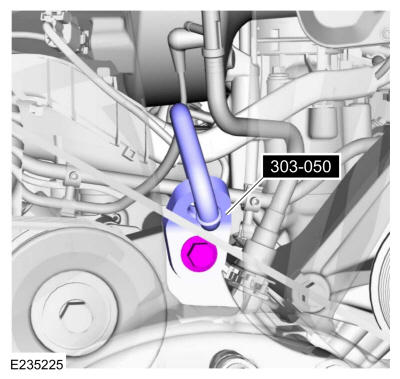

  47. Install Special Service Tool: 303-050 (T70P-6000) Lifting Bracket, Engine.

    Torque: 18 lb.ft (25 Nm)

    GFD407037Courtesy of FORD MOTOR COMPANY

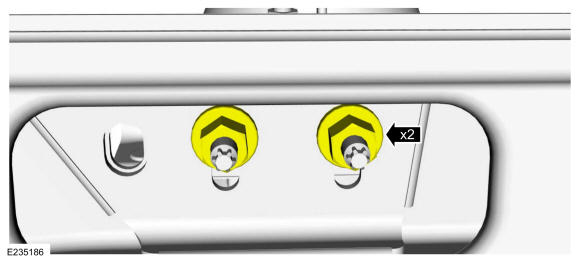

  48. NOTE: Failure to replace the transmission support insulator nuts may result in transmission support insulator damage.

    Loosen the transmission support insulator nuts.

    GFD407038Courtesy of FORD MOTOR COMPANY

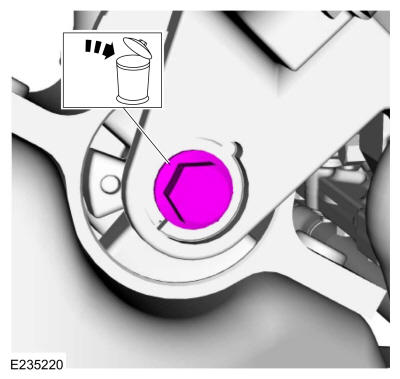

  49. NOTE: Failure to replace the engine mount cross bolts may result in engine mount damage.

    Remove and discard the LH engine mount cross through bolt.

    GFD407039Courtesy of FORD MOTOR COMPANY

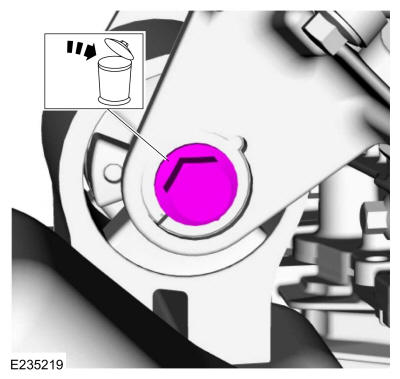

  50. NOTE: Failure to replace the engine mount cross bolts may result in engine mount damage.

    Remove and discard the RH engine mount cross bolt.

    GFD407040Courtesy of FORD MOTOR COMPANY

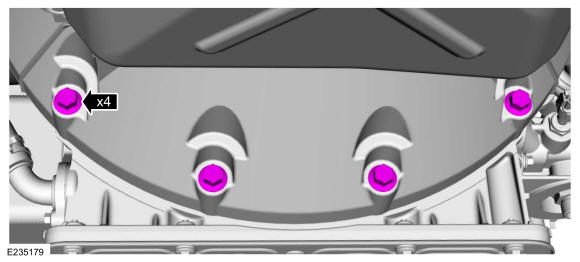

  51. Remove the lower bellhousing bolts.
    GFD407041Courtesy of FORD MOTOR COMPANY
  52. NOTE: Do not support the transmission by the fluid pan, failure to follow instruction may result in serious damage to the transmission.

    Position a transmission jack and support the transmission. Use the General Equipment: Transmission Jack

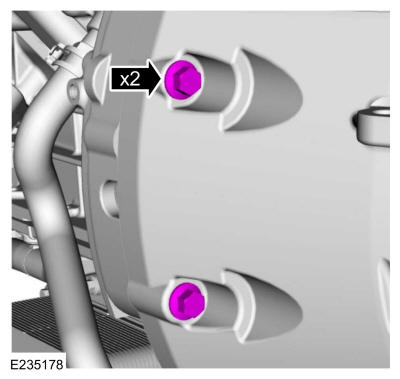

  53. Remove the LH side bellhousing bolts.
    GFD407042Courtesy of FORD MOTOR COMPANY

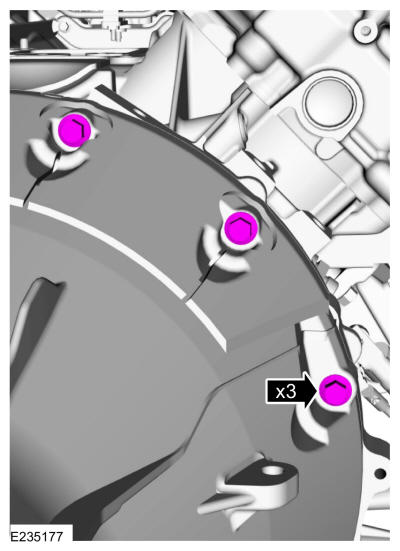

  54. Remove the RH side bellhousing bolts.
    GFD407043Courtesy of FORD MOTOR COMPANY

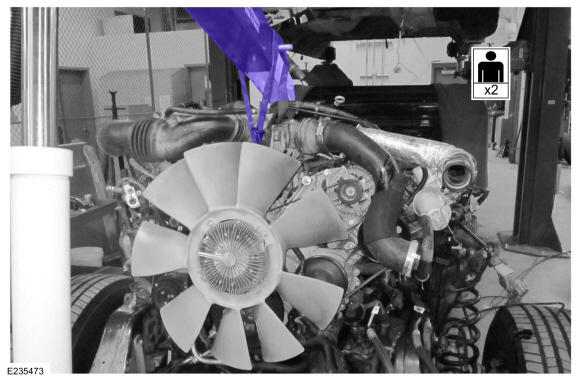

  55. NOTE: During removal of the engine, the engine oil cooler will pass very close to the frame crossmember. Remove the engine slowly, continually checking to make sure the engine oil cooler does not hit the frame crossmember, or component damage may occur.
    NOTE: After the engine is removed, position the engine close to the floor in case of lifting crane failure. Failure to lower the engine may result in engine damage.

    • Position a floor crane and connect to the engine removal bracket. Use the General Equipment: Floor Crane

    • Install a suitable ratchet strap from the arm of the floor crane to the engine lifting bracket to adjust the angle of the engine.

    • Raise and remove the engine from the vehicle.

    GFD407044Courtesy of FORD MOTOR COMPANY

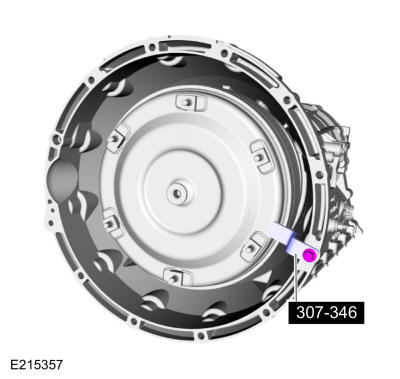

  56. Install Special Service Tool: 307-346 (T97T-7902-A) Retainer, Torque Converter.
    GFD407045Courtesy of FORD MOTOR COMPANY
  57. NOTE: Failure to inspect the components for debris may result in repeat failures.
    NOTE: It may be necessary to use a borescope to inspect the components.

    When an engine or turbocharger is replaced due to a failure, inspect the following components for potential metal debris. If evidence of debris is found, clean or replace the components as needed.

    • CAC and the CAC tubes

    • Intake air system

    • Exhaust manifolds

    • EGR cooler and pipes

    • Diesel Oxidation Catalyst (DOC)

    • Turbocharger (on engine failure only)
