Valve Tappets: Removal

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

Remove the RH cylinder head or LH cylinder head. Refer to: Cylinder Head RH . Refer to: Cylinder Head LH .
NOTE: To prevent engine damage, keep the valve tappets in the order in which they were removed. Install all valve tappets back in their original positions or engine damage may occur.

NOTE: Only one cylinder shown.

NOTE: Always keep the valve tappets in the upright position or the hydraulic lash adjuster may fall out.

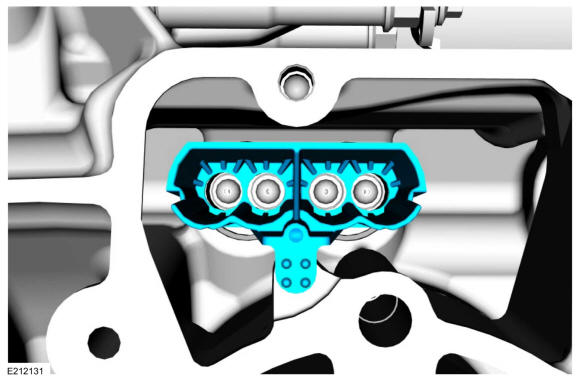

NOTE: Some valve tappets will be removed with the valve tappet guides.

Remove the valve tappet guide(s).

Courtesy of FORD MOTOR COMPANY

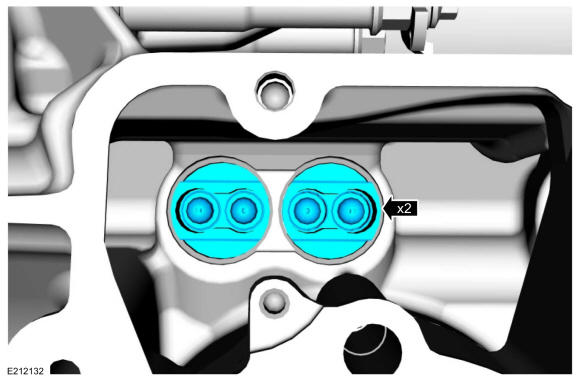

NOTE: Always keep the valve tappets in the upright position or the hydraulic lash adjuster may fall out.

Remove the valve tappets from the engine.

Courtesy of FORD MOTOR COMPANY
NOTE: To prevent engine damage, keep the hydraulic lash adjuster in the order in which they were removed. Install all hydraulic lash adjuster back in their original positions or engine damage may occur.

Inspect the valve tappet and the hydraulic lash adjuster for wear or damage. If any wear or damage is found, inspect the camshaft lobe for wear or damage. Replace components as necessary.

Courtesy of FORD MOTOR COMPANY
