Valve Cover LH: Removal

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

Remove the following items:
1. Remove the LH fuel injectors. Refer to: Fuel Injectors .
2. Remove the LH fuel rail. Refer to: Fuel Rail .
3. Remove the LH glow plugs. Refer to: Glow Plugs .
Disconnect the wire retainers from the valve cover stud bolts.

Courtesy of FORD MOTOR COMPANY
Disconnect the wire retainers for the fuel injection harness.

Courtesy of FORD MOTOR COMPANY
Disconnect the wire retainer from the rear valve cover stud bolt.

Courtesy of FORD MOTOR COMPANY
NOTE: It will be necessary to position aside the oil level indicator in order to remove the valve cover.

NOTE: Mark the location of the fasteners prior to removing the valve cover.

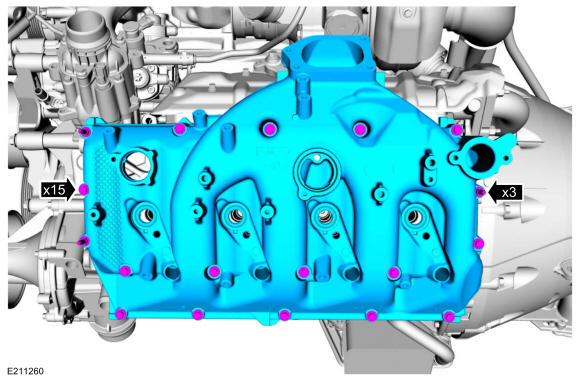

Remove the retainers and the LH valve cover.

Courtesy of FORD MOTOR COMPANY

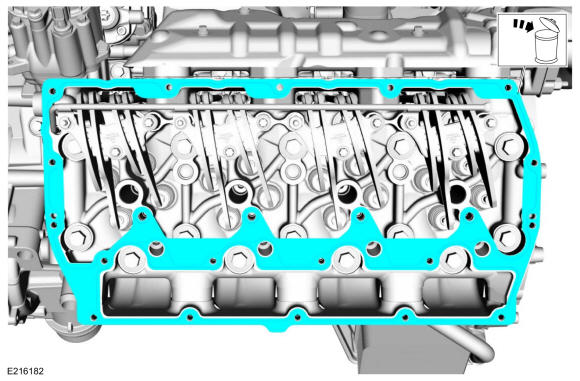

Remove and discard the valve cover gasket.

Courtesy of FORD MOTOR COMPANY

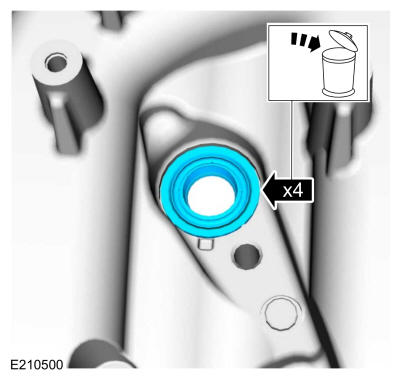

NOTE: Use the notch in the valve cover to aid in removing the fuel injector-to-valve cover seal.

Remove and discard the fuel injector-to-valve cover seals.

Courtesy of FORD MOTOR COMPANY
