Upper Intake Manifold: Removal
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM Color Coding
- Remove the following items:
- Refer to: Cowl Panel .
- Refer to: Charge Air Cooler (CAC) Intake Pipe .
-
- Disconnect the wiring harness retainers.
- Disconnect the MAP sensor, EP (exhaust pressure) sensor, EGRT sensor and the turbocharger actuator electrical connectors.
- Disconnect the coolant hose retainer from the upper intake manifold.
-
- Remove the transmission fluid level indicator tube bolt and the engine oil level indicator tube bolt.
- Remove the nut and position aside the tubes.
-

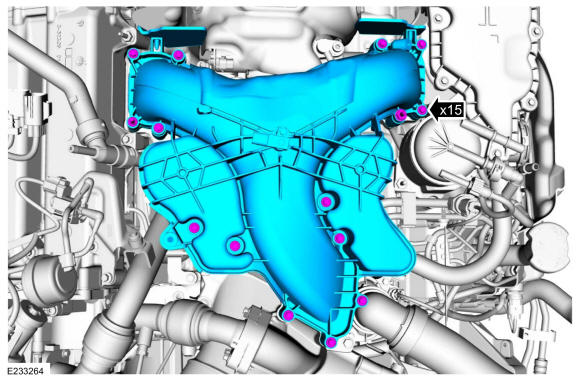

- Loosen the retainers and remove the upper intake manifold.
- Cover or tape the opening on the valve covers and the lower intake manifold.

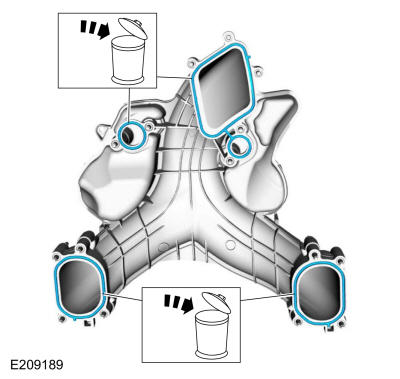

- Remove and discard the upper intake manifold gaskets.
