Upper Intake Manifold: Installation
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

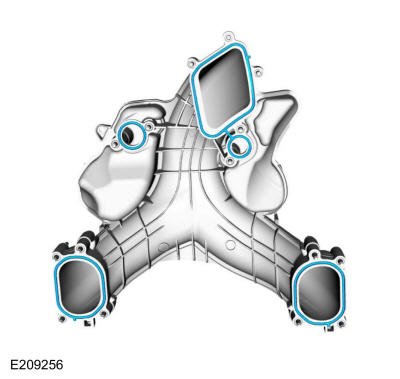

- Install the new upper intake manifold gaskets.
-
NOTE: Do not slide the upper intake manifold across the lower intake manifold during installation. Failure to follow this may result in damage to the upper intake manifold gaskets.
- Remove the cover or tape from the valve covers and lower intake manifold prior to installing the upper intake manifold.

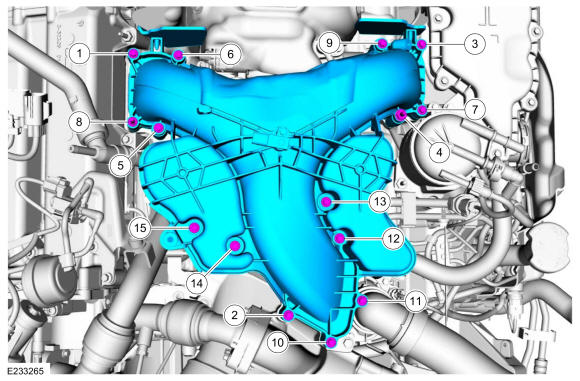

- Install the upper intake manifold and tighten the retainers.
Torque: Stage 1: 89 lb.in (10 Nm) Stage 2: 98 deg.

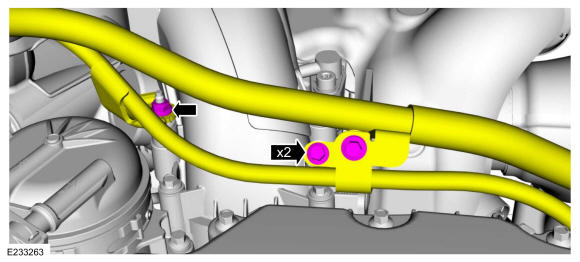

- Install the engine oil level indicator tube bolt, nut and the transmission fluid level indicator tube bolt.
- Torque: Engine oil level indicator tube nut: 89 lb.in (10 Nm)
- Torque: Engine oil level indicator tube bolt: 89 lb.in (10 Nm)
- Torque: Transmission fluid indicator tube bolt: 97 lb.in (11 Nm)
- Connect the coolant hose retainer to the upper intake manifold.
-

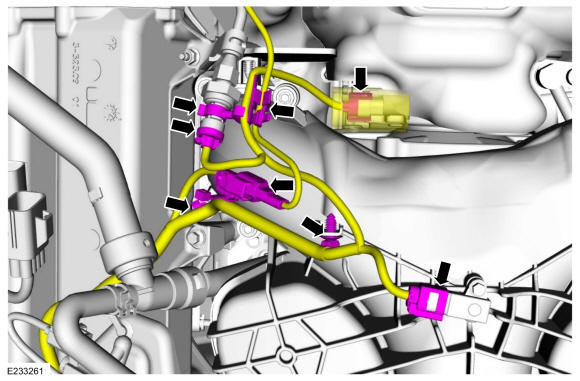

- Connect the MAP sensor, EP sensor, EGRT sensor and the turbocharger actuator electrical connectors.
- Connect the wiring harness retainers.
- Install the following items:
- Refer to: Charge Air Cooler (CAC) Intake Pipe .
- Refer to: Cowl Panel .
