Oil Pump Screen and Pickup Tube: Removal

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

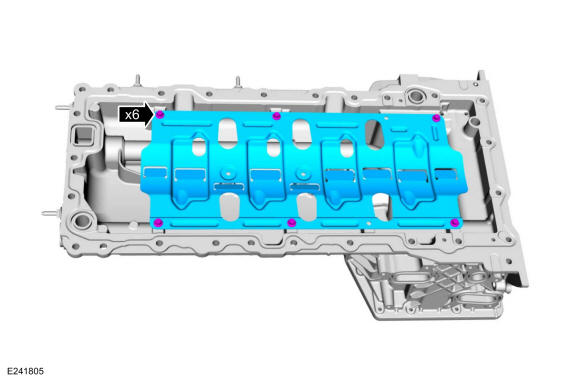

Remove the bolts and the oil pan baffle.

GFD406916Courtesy of FORD MOTOR COMPANY

Remove the bolts and the oil pump screen and pickup tube.

GFD406917Courtesy of FORD MOTOR COMPANY

Remove and discard the O-ring seal.

GFD406918Courtesy of FORD MOTOR COMPANY
