Oil Pump Screen and Pickup Tube: Installation
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
-
NOTE: Apply clean engine oil to the O-ring seal prior to installing the oil pump screen and pickup tube.
Install new O-ring seal.
Material: Motorcraft® SAE 10W-30 Super Duty Diesel Motor Oil / XO-10W30-QSDF (WSS-M2C171-F1)

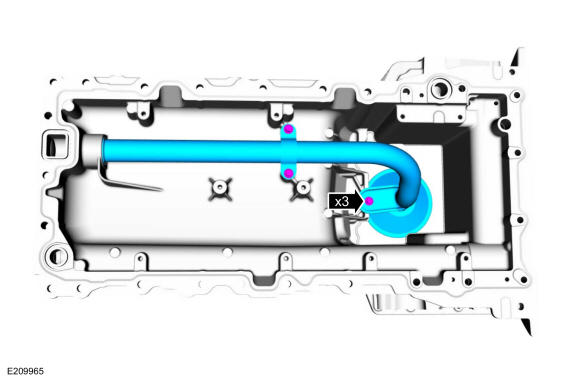

- Install the oil pump screen and pickup tube and bolts.
Torque: 89 lb.in (10 Nm)

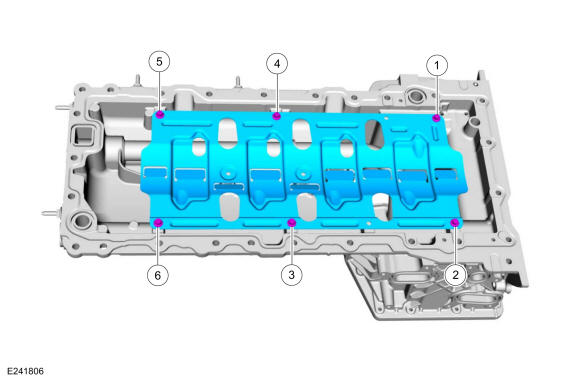

- Install the oil pan baffle and bolts.
Torque: 89 lb.in (10 Nm)
