Oil Level Indicator and Tube: Removal

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

Upper oil level indicator tube

  1. Refer to: Jacking and Lifting - Overview .

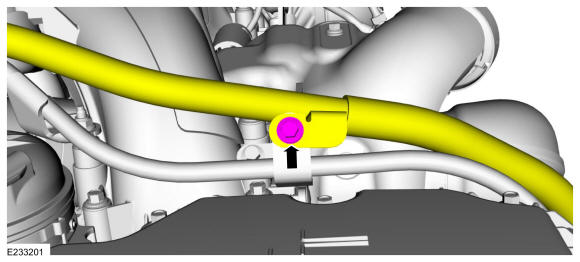

  2. Remove the bolt and position aside the transmission oil level indicator tube.
    GFD406910Courtesy of FORD MOTOR COMPANY

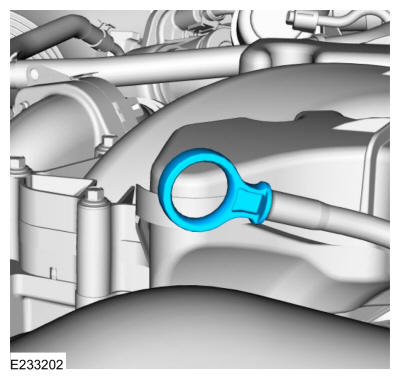

  3. Remove the oil level indicator.
    GFD406911Courtesy of FORD MOTOR COMPANY

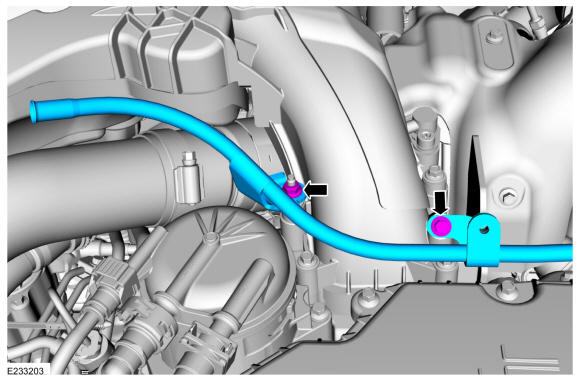

    • Remove the nut and bolt for the oil level indicator.

    • From below, remove the oil level indicator tube from the engine rear cover.

    GFD406912Courtesy of FORD MOTOR COMPANY
  5. Remove and discard the O-ring seals.
    GFD406913Courtesy of FORD MOTOR COMPANY

    Lower oil level indicator tube

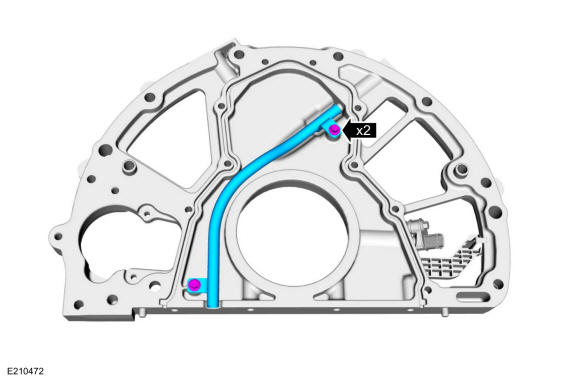

  6. Remove the bolts and the lower oil level indicator tube.
GFD406914Courtesy of FORD MOTOR COMPANY
