Lower Oil Pan: Removal
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
- Refer to: Jacking and Lifting - Overview .

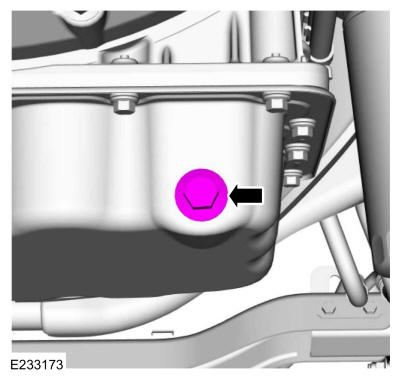

- Drain the engine oil. Use the General Equipment: Oil Drain Equipment
Torque: 19 lb.ft (26 Nm)

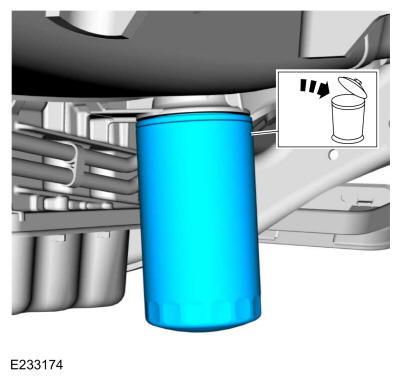

- Remove and discard the oil filter. Use the General Equipment: Oil Drain Equipment

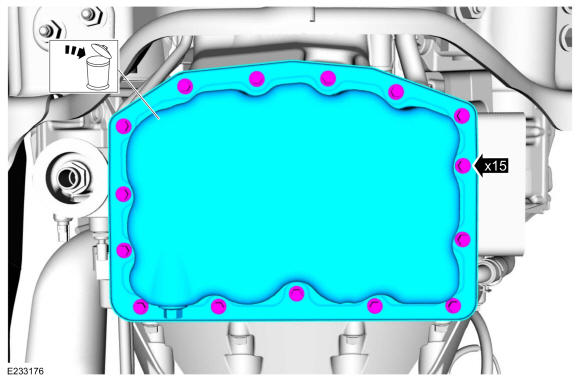

- Remove the bolts and the lower oil pan. Discard the lower oil pan.
- Clean and prepare the RTV sealing surface. Refer to: RTV Sealing Surface Cleaning and Preparation .
