Lower Oil Pan: Installation

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

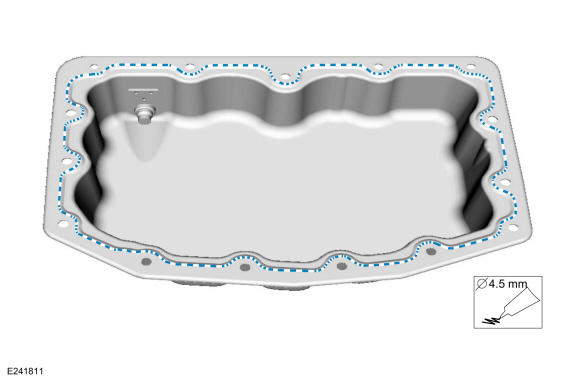

Apply a 4.5 mm (0.177 in) diameter bead of sealant 1.0 mm (0.039 in) outward of the chamfer on the lower oil pan sealing face.
Material: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

Courtesy of FORD MOTOR COMPANY
Install the lower oil pan and the bolts.
Torque: 89 lb.in (10 Nm)

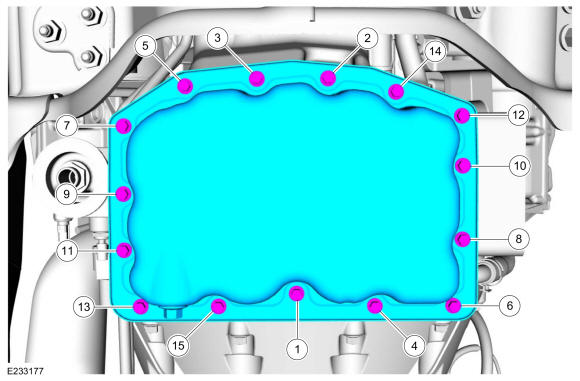

Fig 1: Lower Oil Pan Tightening Sequence
Courtesy of FORD MOTOR COMPANY

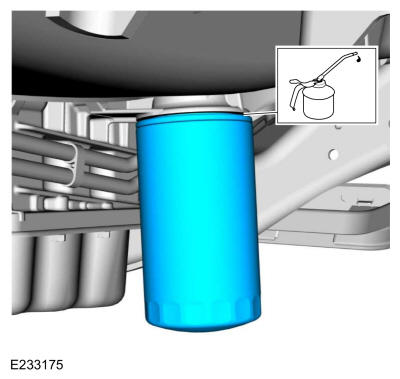

Install a new oil filter.
Material: Motorcraft® SAE 10W-30 Super Duty Diesel Motor Oil / XO-10W30-QSDF (WSS-M2C171-F1)

Torque: Stage 1: 44 lb.in (5 Nm) | Stage 2: 230 deg.

Courtesy of FORD MOTOR COMPANY
Fill the engine with the correct engine oil for the climate. Refer to: Specifications .
