Hydraulic Lash Adjuster: Installation
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
-

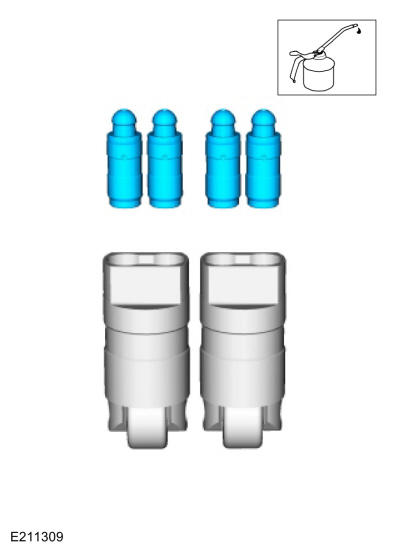

NOTE: Apply clean engine oil to the hydraulic lash adjuster prior to installation.
- Using a magnetic telescopic pick-up tool, install the hydraulic lash adjuster into the valve tappet assembly.
Material: Motorcraft® SAE 10W-30 Super Duty Diesel Motor Oil / XO-10W30-QSDF (WSS-M2C171-F1)
- Verify that the hydraulic lash adjuster is properly installed.
- Using a magnetic telescopic pick-up tool, install the hydraulic lash adjuster into the valve tappet assembly.
- Refer to: Rocker Arm .
