Removal And Installation: Flexplate: Installation
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
-
NOTE: Do not use magnetic screwdrivers or other magnetic tools around the CKP sensor and the crankshaft sensor pulse ring or damage to the components may occur.

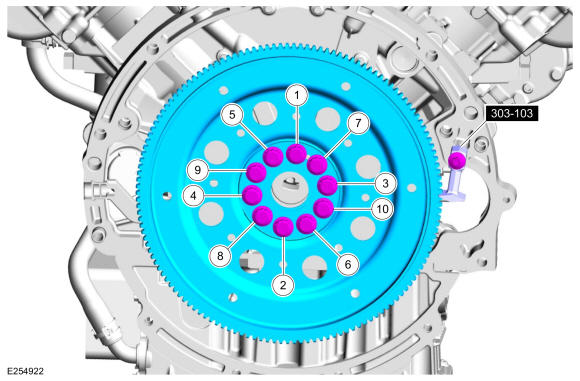

Install the flexplate and the new bolts. Use Suggested Tool: 303-103 (T74P-6375-A) Holding Tool, Flywheel. Tool shown or a commercially available equivalent can be used.
Torque: Stage 1: 44 lb.in (5 Nm) Stage 2: 74 lb.ft (100 Nm)
- Refer to: Transmission - 6.7L Power Stroke Diesel .
