Exhaust Manifold LH: Removal
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the following items:
- Refer to: Turbocharger .
- Refer to: Turbocharger Inlet Pipe LH .
- Remove the bolts, upper bracket and the fuel tube isolators.
-
NOTE: Mark the location of the bracket before loosening the bolt.
Loosen the bolt and position the fuel tube bracket aside.
- Remove the bolts and the LH exhaust manifold heat shield.

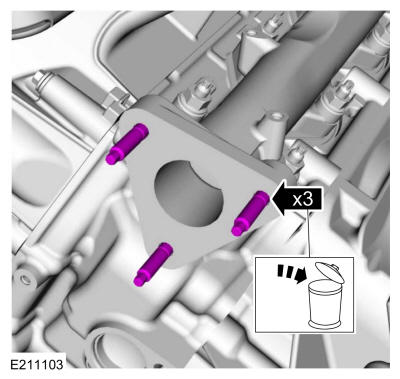

- Remove and discard the exhaust manifold studs.
-
NOTE: Mark the location of the spacers before removal.

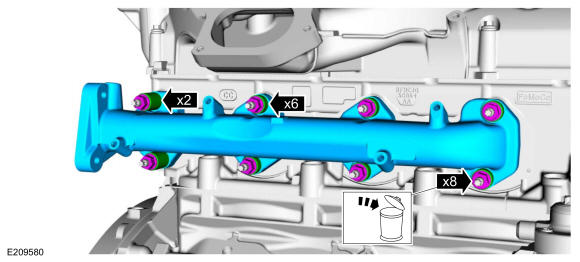

- Remove the nuts, spacers and the LH exhaust manifold.
- Discard the nuts.
-
NOTE: Cylinder number 8 will have longer exhaust manifold studs.

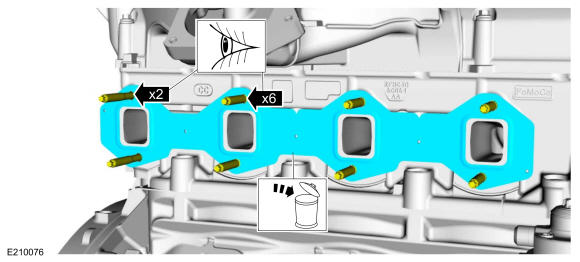

- Remove and discard the exhaust manifold gasket.
- Replace any exhaust manifold stud(s) that are damaged or removed with the nut.
