Engine Rear Cover: Installation
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

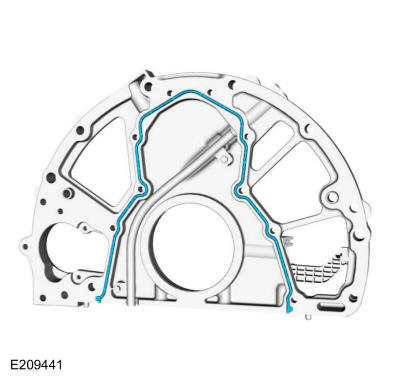

- Install a new engine rear cover gasket.
-
NOTE: To prevent engine damage, replace damaged or missing dowel pins before installing the engine rear cover.

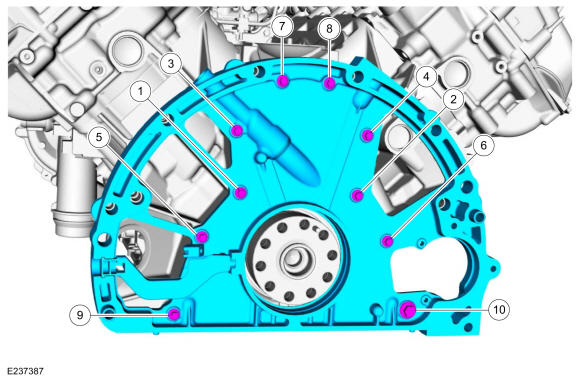

Install the engine rear cover and the bolts.
Torque: Tighten bolts 1 through 9 to : 89 lb.in (10 Nm)
Torque: Tighten bolt 10 to : 35 lb.ft (48 Nm)
-
NOTE: Do not use magnetic screwdrivers or other magnetic tools around the CKP sensor and the crankshaft sensor pulse ring or damage to the components may occur.
Connect the CKP sensor electrical connector.
- Install the turbocharger downpipe bracket bolt.
Torque: 18 lb.ft (25 Nm)
- Refer to: Crankshaft Rear Seal .
- Refer to: Upper Oil Pan .
- Install the upper oil level indicator and tube. Refer to: Oil Level Indicator and Tube .
