Crankshaft Front Seal: Removal

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

Refer to: Jacking and Lifting - Overview .
Refer to: Engine Cooling System Draining, Vacuum Filling And Bleeding .
Remove the following items:
1. Refer to: Cooling Fan .
2. Refer to: Cooling Fan Stator .
3. Refer to: Accessory Drive Belt .
Disconnect the transmission oil cooler coolant hoses.

Courtesy of FORD MOTOR COMPANY
Remove the nut, bolt and the transmission oil cooler coolant tube.

Courtesy of FORD MOTOR COMPANY
Remove the stud bolt and the transmission oil cooler coolant tube.

Courtesy of FORD MOTOR COMPANY
NOTE: Only one tube shown.

Remove and discard the transmission oil cooler coolant tube O-rings.

Courtesy of FORD MOTOR COMPANY
WARNING: Support the vibration damper during mounting bolt removal. The damper can slide off the nose of the crankshaft. Failure to follow this instruction may result in serious personal injury.

NOTE: To prevent engine damage, always install new bolts when installing the crankshaft pulley.

Remove bolts and the crankshaft pulley. Discard the bolts.

Courtesy of FORD MOTOR COMPANY
NOTE: Use extreme care when removing the slinger or damage to the engine front cover may occur.

NOTE: It will be necessary to remove the slinger from the sides as well as the top and bottom.

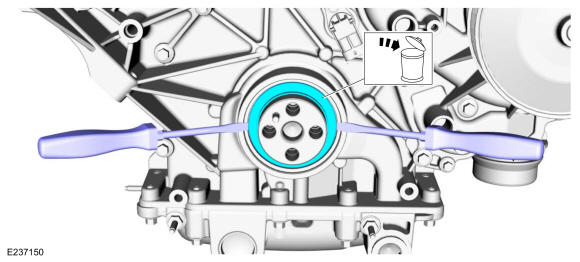

Using 2 screwdrivers, carefully remove and discard the front crankshaft slinger.

Courtesy of FORD MOTOR COMPANY
NOTE: Do not scratch or damage the crankshaft during removal or installation of the front crankshaft seal.

NOTE: The Front Crank Seal Remover needs to be threaded in until it stops turning.

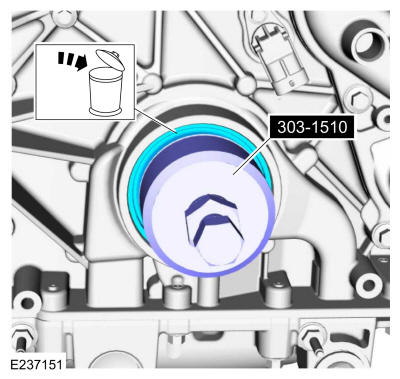

Using the special tool, remove and discard the crankshaft front seal. Use Special Service Tool: 303-1510 Remover, Front Crank Seal.

Courtesy of FORD MOTOR COMPANY
Clean and inspect the crankshaft sealing surface.
