Cylinder Head: Assembly

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

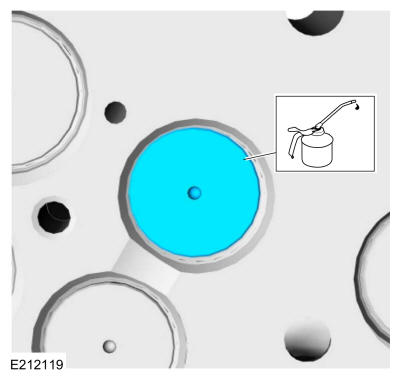

NOTE: If installing the original valves, make sure the valves are installed in the same position from which they were removed.

NOTE: Apply oil to the outer diameter of the valve and valve tip prior to valve and seal installation. The valve must rotate freely.

Lubricate with clean engine oil and install the valve in the cylinder head.

Material: Motorcraft® SAE 10W-30 Super Duty Diesel Motor Oil / XO-10W30-QSDF (WSS-M2C171-F1)

Courtesy of FORD MOTOR COMPANY

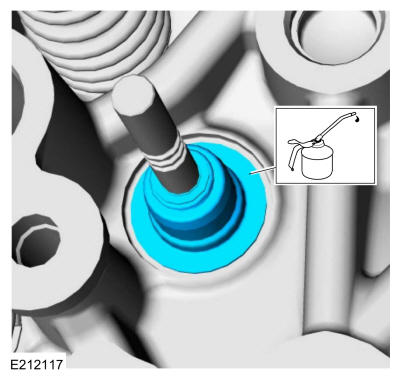

NOTE: Lubricate the valve seal assembly with clean engine oil prior to installing.

NOTE: The valve seal assembly will not seat completely by hand. The Valve Spring Compressor will seat the valve seal assembly when installing the valve stem keys.

NOTE: Use commercially available valve stem seal pliers.

Lubricate with clean engine oil and install the valve seal.

Material: Motorcraft® SAE 10W-30 Super Duty Diesel Motor Oil / XO-10W30-QSDF (WSS-M2C171-F1)

Courtesy of FORD MOTOR COMPANY
Install the valve spring.

Courtesy of FORD MOTOR COMPANY
NOTE: Verify that the valve stem keys are correctly seated after removal of the Valve Spring Compressor or engine damage may occur.

NOTE: Use a small screwdriver and multi-purpose grease to install the valve collets. Check the seating of the valve collets.

Using the special tools, install the valve spring retainer and the valve collets. Use Special Service Tool: 303-1516 Compressor, Valve Spring., 303-300 (T87C-6565-A) Set, Valve Spring Compressor.

Material: Motorcraft® Multi-Purpose Grease Spray / XL-5-A (ESB-M1C93-B)

Courtesy of FORD MOTOR COMPANY
Repeat the above steps for each valve.
