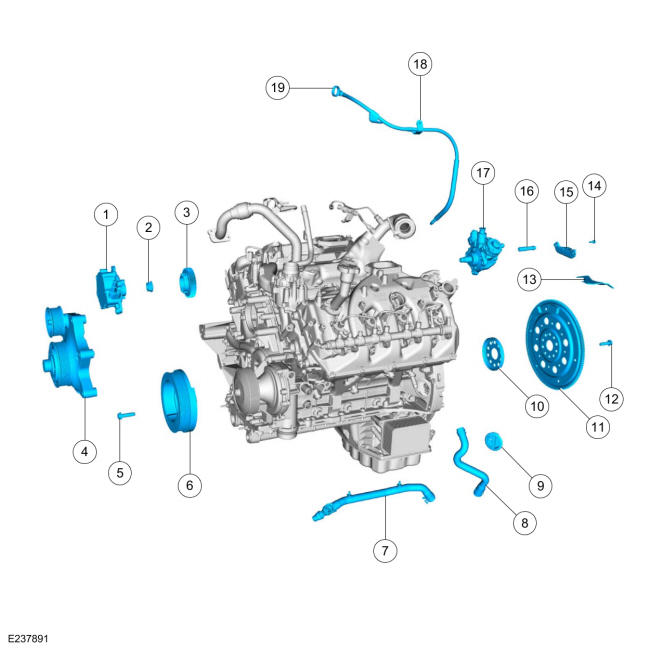

Fuel Injection Pump, Crankshaft Pulley and Flexplate
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | 2A451 | Vacuum pump |
| 2 | 00811 | Fuel injection pump drive gear nut |
| 3 | 9F589 | Fuel injection pump drive gear |
| 4 | 8678 | Cooling fan drive assembly |
| 5 | 6379 | Crankshaft pulley bolt (4 required) |
| 6 | 6312 | Crankshaft pulley |
| 7 | 6A715 | Oil cooler outlet hose |
| 8 | 6A715 | Oil cooler inlet hose |
| 9 | 6C070 | Cylinder block opening cover |
| 10 | 12A227 | Crankshaft sensor pulse ring |
| 11 | 6375 | Flexplate |
| 12 | 6379 | Flexplate bolt (10 required) |
| 13 | 9G478 | Turbocharger heat shield |
| 14 | W503275 | Fuel rail supply tube bracket bolt (2 required) |
| 15 | 9G290 | Fuel rail supply tube bracket |
| 16 | 9N943 | Fuel injection pump spacer (3 required) |
| 17 | 9A543 | Fuel injection pump |
| 18 | 6754 | Oil level indicator tube |
| 19 | 6750 | Oil level indicator |
