Cylinder Head and Oil Pans
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

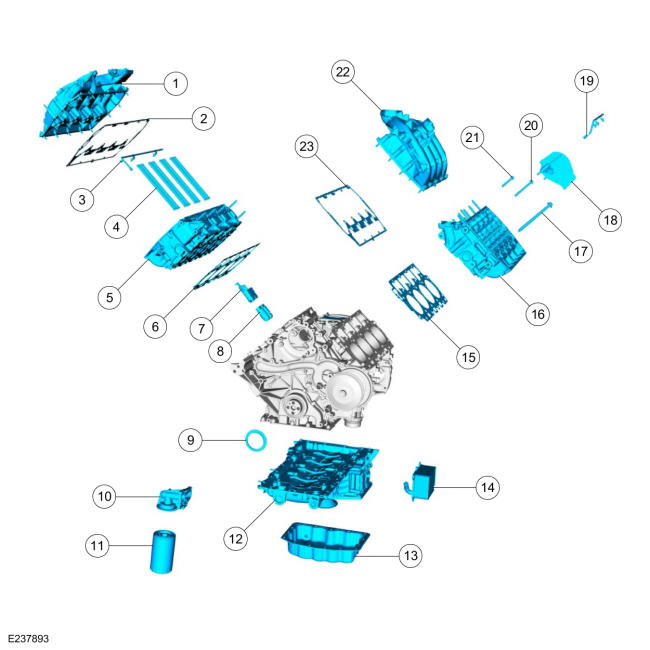

| Item | Part Number | Description |
|---|---|---|
| 1 | 6582 | RH valve cover |
| 2 | 6584 | RH valve cover gasket |
| 3 | 6578 | RH oil spray bar |
| 4 | 6565 | Push rod (32 required) |
| 5 | 6049 | RH cylinder head |
| 6 | 6051 | RH cylinder head gasket |
| 7 | 6K564 | Valve tappet guide (8 required) |
| 8 | 6500 | Valve tappet (16 required) |
| 9 | 6310 | Front crankshaft slinger |
| 10 | 6881 | Oil filter adapter |
| 11 | 6731 | Oil filter |
| 12 | 6675 | Upper oil pan |
| 13 | 6695 | Lower oil pan |
| 14 | 6A642 | Oil cooler |
| 15 | 6051 | LH cylinder head gasket |
| 16 | 6049 | LH cylinder head |
| 17 | 6065 | Cylinder head bolt (M12) (36 required) |
| 18 | 6A585 | Rocker arm assembly (8 required) |
| 19 | 6578 | LH oil spray bar |
| 20 | 6065 | Cylinder head bolt (M8, LH cylinder head only) |
| 21 | 6065 | Cylinder head bolt (M8) (8 required) |
| 22 | 6582 | LH valve cover |
| 23 | 6584 | LH valve cover gasket |
