Removal And Installation: Thermostat: Removal
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty and 2019 Ford F-450 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM Color Coding
NOTE:
Removal steps in this procedure may contain installation details.
- Drain the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .

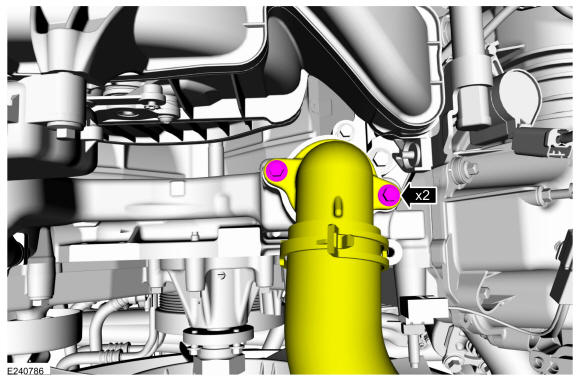

- Remove the bolts and position aside the coolant outlet connection.
Torque: 89 lb.in (10 Nm)
- Remove the thermostat and discard the O-ring seal.
