Valve Cover RH: Installation

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty and 2019 Ford F-450 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

Install the RH valve cover gasket.

Courtesy of FORD MOTOR COMPANY
NOTE: If the valve cover is not secured within 4 minutes, the sealant must be removed and the sealing area cleaned with silicone gasket remover and metal surface prep. Follow the directions on the packaging. Allow to dry until there is no sign of wetness, or 4 minutes, whichever is longer. Failure to follow this procedure may cause future oil leakage.

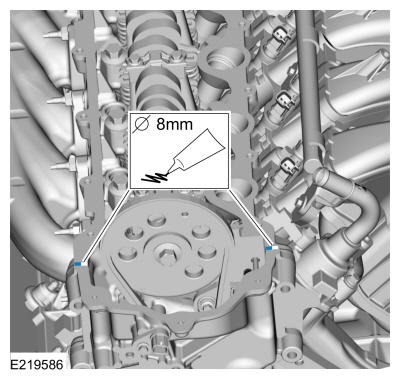

Apply a 8 mm (0.314 in) bead of silicone sealant.

Material: Motorcraft® Silicone Gasket and Sealant / TA-30 (WSE-M4G323-A4)

Courtesy of FORD MOTOR COMPANY
- Install the RH valve cover and the bolts finger-tight.
- Tighten the bolts in sequence shown.
  Torque: 89 lb.in (10 Nm)

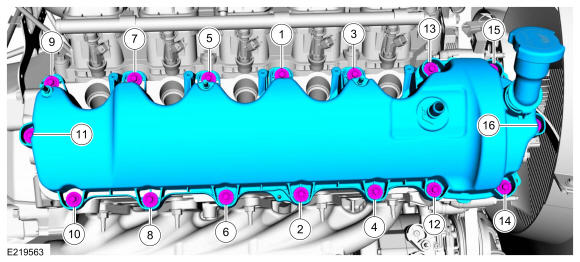

Fig 1: RH Valve Cover Component Location W/ Bolt Tightening Sequence
Courtesy of FORD MOTOR COMPANY

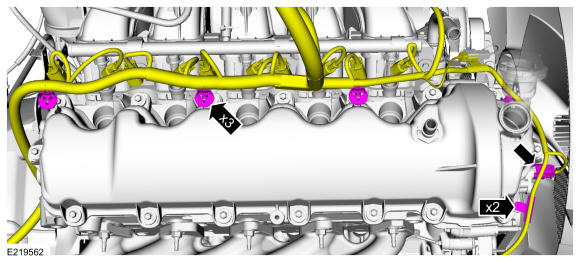

- Position the wiring harness and attach the wiring harness retainers.
- Connect the CMP sensor electrical connector.
Courtesy of FORD MOTOR COMPANY

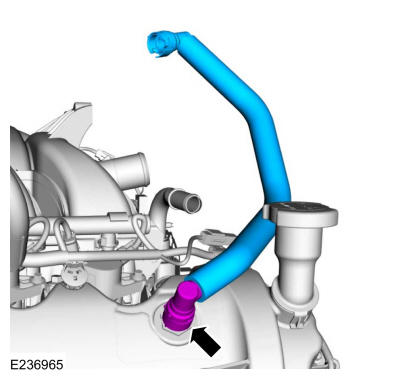

Install the PCV tube and connect the quick connect coupling. Refer to: Quick Release Coupling .

Courtesy of FORD MOTOR COMPANY
Install the RH ignition coils. Refer to: Ignition Coil-On-Plug .

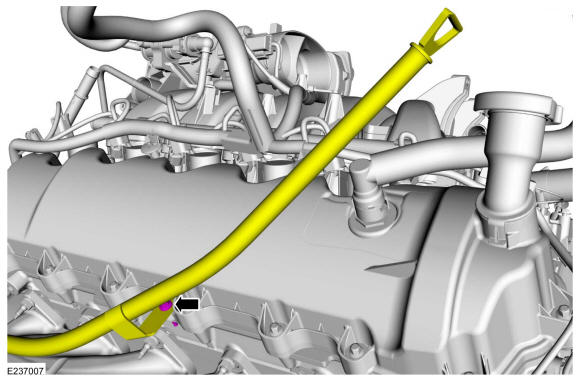

Position the transmission filler tube and install the bolts.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

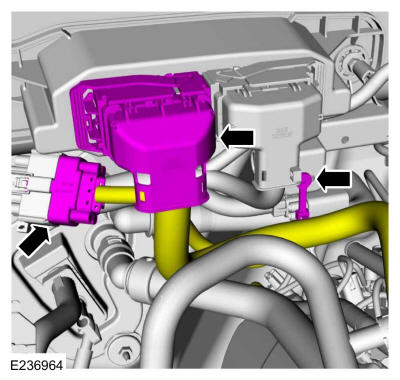

Connect the engine wiring harness electrical connectors and attach the retainers.

Courtesy of FORD MOTOR COMPANY
Install the following items:
1. Air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe .
2. Air cleaner. Refer to: Air Cleaner .
