Oil Cooler: Installation
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty and 2019 Ford F-450 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

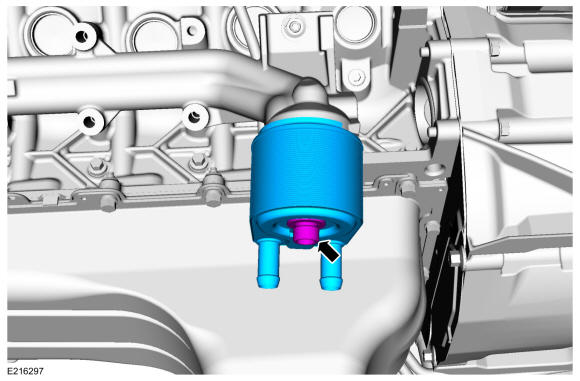

- Install the engine oil cooler and the retainer.
Torque: 43 lb.ft (58 Nm)
-

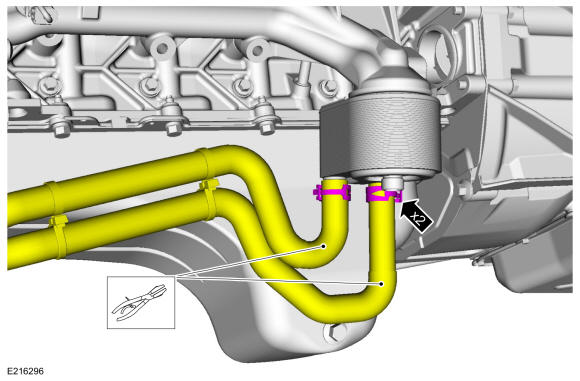

- Connect the coolant hoses.
- Remove the hose locking pliers Use the General Equipment: Locking Pliers
-

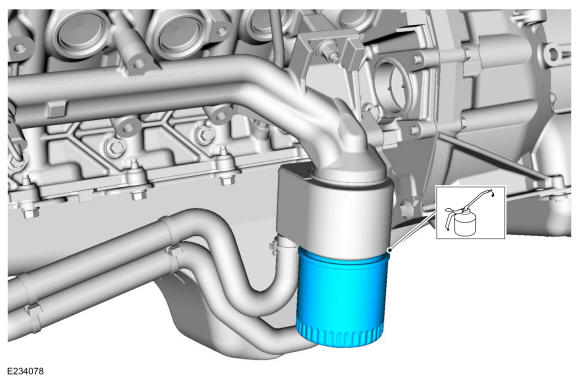

NOTE: Lubricate the oil filter gasket with clean engine oil.
Install a new oil filter.
Material: Engine Oil - SAE 5W-30 - Synthetic Blend Motor Oil / XO-5W30-Q1SP (WSS-M2C946-B1)
Torque: 142 lb.in (16 Nm)
- Fill the engine with clean engine oil. Refer to: Specifications .
- Inspect and adjust the coolant level in the degas bottle.
