Intake Manifold: Installation

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty and 2019 Ford F-450 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
  1. To install, reverse the removal procedure.
  2. Tighten the intake manifold bolts and the stud bolt in 2 stages in sequence shown.

    Torque: Stage 1: 18 lb.in (2 Nm) | Stage 2: 89 lb.in (10 Nm)

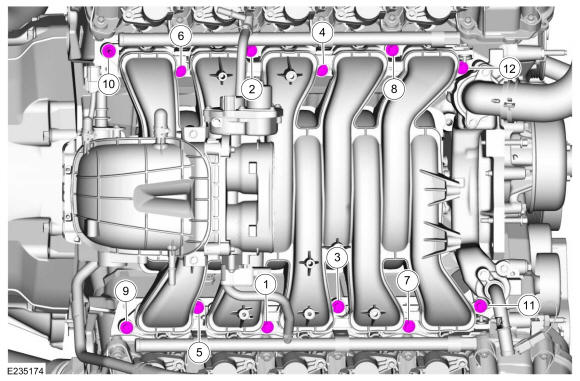

Fig 1: Intake Manifold Component Location W/ Bolt Tightening Sequence
GFD406394Courtesy of FORD MOTOR COMPANY
