Hydraulic Lash Adjuster: Installation

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty and 2019 Ford F-450 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

Right hand (RH) hydraulic lash adjusters

NOTE: If the components are to be reinstalled, they must be installed in the same positions or engine damage may occur.

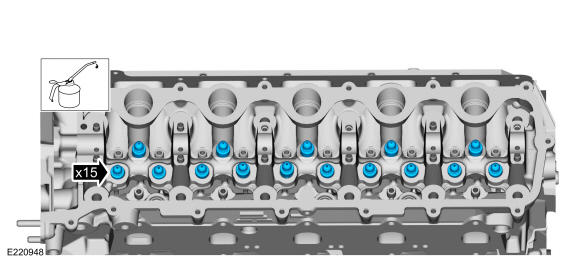

1. Lubricate the hydraulic lash adjusters with clean engine oil.
2. Install the hydraulic lash adjusters.
Courtesy of FORD MOTOR COMPANY
NOTE: If the components are to be reinstalled, they must be installed in the same positions or engine damage may occur.

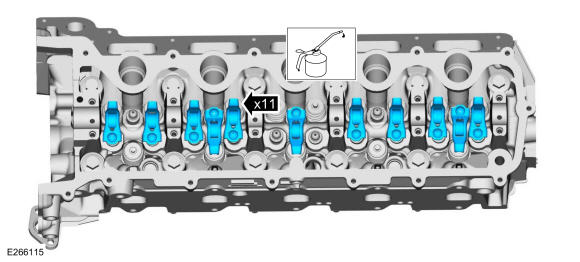

1. Lubricate the roller followers with clean engine oil.
2. Install only the identified camshaft roller followers.
Courtesy of FORD MOTOR COMPANY
Install the RH camshaft. Refer to: Camshaft RH .
Left hand (LH) hydraulic lash adjusters
NOTE: If the components are to be reinstalled, they must be installed in the same positions or engine damage may occur.

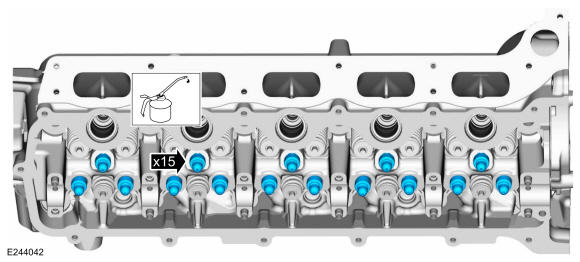

1. Lubricate the hydraulic lash adjusters with clean engine oil.
2. Install the hydraulic lash adjusters.
Courtesy of FORD MOTOR COMPANY
NOTE: If the components are to be reinstalled, they must be installed in the same positions or engine damage may occur.
1. Lubricate the roller followers with clean engine oil.
2. Install only the identified camshaft roller followers.
Courtesy of FORD MOTOR COMPANY
Install the LH camshaft. Refer to: Camshaft LH .
