Removal And Installation: Flexplate: Installation

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty and 2019 Ford F-450 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
    • Install the flexplate and the bolts finger-tight.

    • Tighten the bolts in sequence shown.

      Torque: 59 lb.ft (80 Nm)

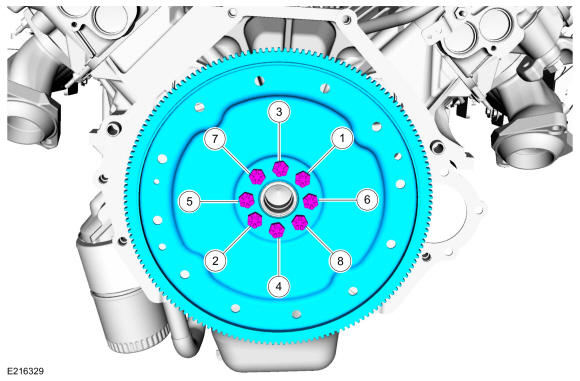

    Fig 1: Flexplate Component Location W/ Bolt Tightening Sequence
    GFD406371Courtesy of FORD MOTOR COMPANY
  2. Install the transmission. Refer to: Transmission .
  3. Use the Powertrain Control Module (PCM) Misfire Monitor Profile Correction routine in the diagnostic scan tool.
