Exhaust Manifold LH: Removal

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty and 2019 Ford F-450 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM Color Coding

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
Remove the RH muffler inlet pipe to manifold nuts.

Courtesy of FORD MOTOR COMPANY
Remove the LH muffler inlet pipe to manifold nuts.

Courtesy of FORD MOTOR COMPANY
Remove the bolts and the heat shield.

Courtesy of FORD MOTOR COMPANY

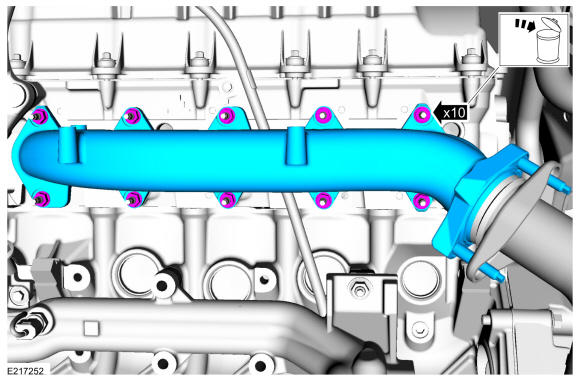

- Remove the nuts and the exhaust manifold.
- Discard the nuts.
Courtesy of FORD MOTOR COMPANY

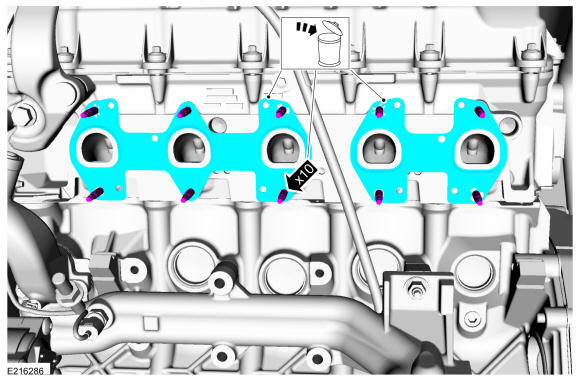

Remove and discard the exhaust manifold gaskets and studs.

Courtesy of FORD MOTOR COMPANY
Clean and inspect the exhaust manifold. Refer to: Exhaust Manifold Cleaning and Inspection .
