Engine Front Cover: Installation

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty and 2019 Ford F-450 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

Clean and prepare the RTV sealing surface. Refer to: RTV Sealing Surface Cleaning and Preparation .

Courtesy of FORD MOTOR COMPANY
NOTE: If the engine front cover is not secured within 4 minutes, the sealant must be removed and the sealing area cleaned. To clean the sealing area, use silicone gasket remover and metal surface prep. Allow to dry until there is no sign of wetness, or 4 minutes, whichever is longer. Failure to follow this procedure can cause future oil leakage.

NOTE: Make sure that the engine front cover gaskets are in place on the engine front cover before installation.

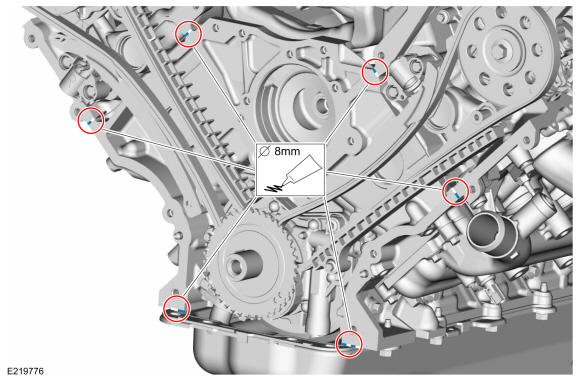

Apply a bead of silicone gasket and sealant 8 mm (0.314 in) along the cylinder head-to-cylinder block surface and the oil pan-to-cylinder block surface, at the locations shown.

Material: Motorcraft® Silicone Gasket and Sealant / TA-30 (WSE-M4G323-A4)

Courtesy of FORD MOTOR COMPANY

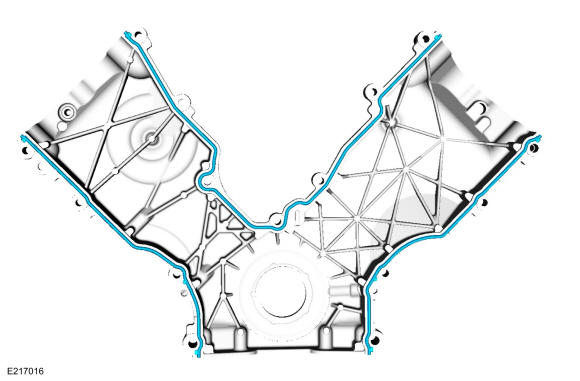

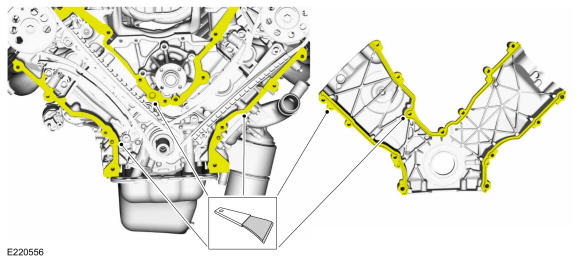

Install the engine front cover new gaskets on the engine front cover.

Courtesy of FORD MOTOR COMPANY
NOTE: Timing chain removed from illustration for clarity.

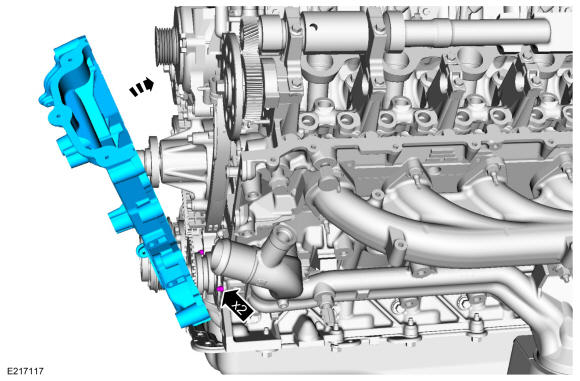

Install the engine front cover onto the dowels.

Courtesy of FORD MOTOR COMPANY
- Install the engine front cover bolts and studs finger-tight.
- Tighten the engine front cover bolts and studs in sequence shown.
  Torque: 1-5: 18 lb.ft (25 Nm) 6-7: 35 lb.ft (48 Nm) 8-15: 18 lb.ft (25 Nm)
Fig 1: Engine Front Cover Component Location W/ Bolt Tightening Sequence
Courtesy of FORD MOTOR COMPANY
- Loosely install the bolts.

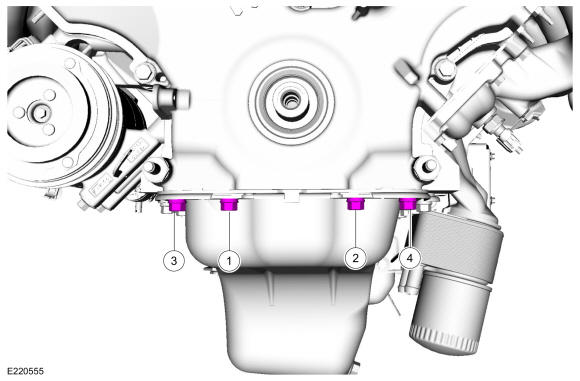

- Tighten the front oil pan bolts in sequence shown in 2 stages.
  Torque: Stage 1: 177 lb.in (20 Nm) | Stage 2: 60 deg.

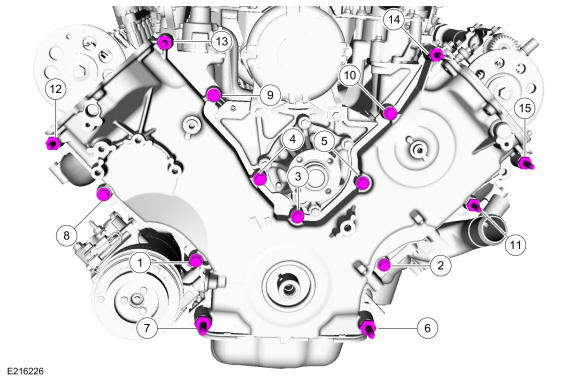

Fig 2: Oil Pan Component Location W/ Bolt Tightening Sequence
Courtesy of FORD MOTOR COMPANY

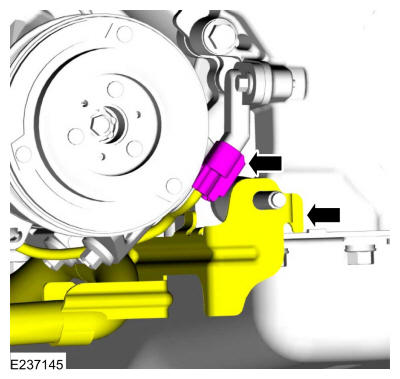

- Connect the CKP sensor electrical connector.
- Slide the wiring harness bracket onto the stud bolt.
Courtesy of FORD MOTOR COMPANY

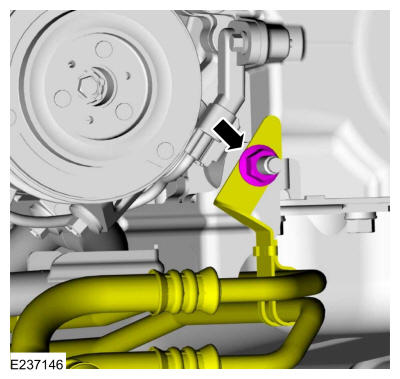

Position the transmission oil cooler tube bracket and install the nut.
Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

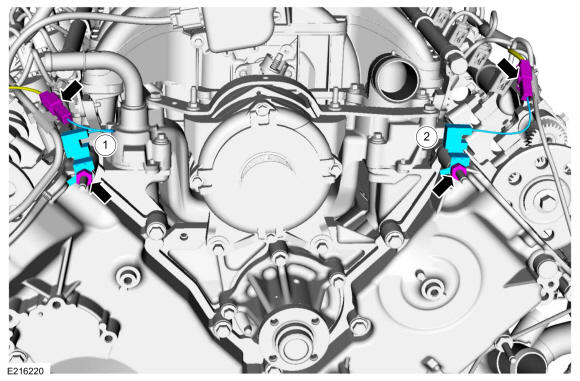

1. Install the RH radio ignition interference capacitor and the nut. Connect the electrical connector.
  Torque: 18 lb.ft (25 Nm)
2. Install the LH radio ignition interference capacitor and the nut. Connect the electrical connector.
  Torque: 18 lb.ft (25 Nm)
Courtesy of FORD MOTOR COMPANY

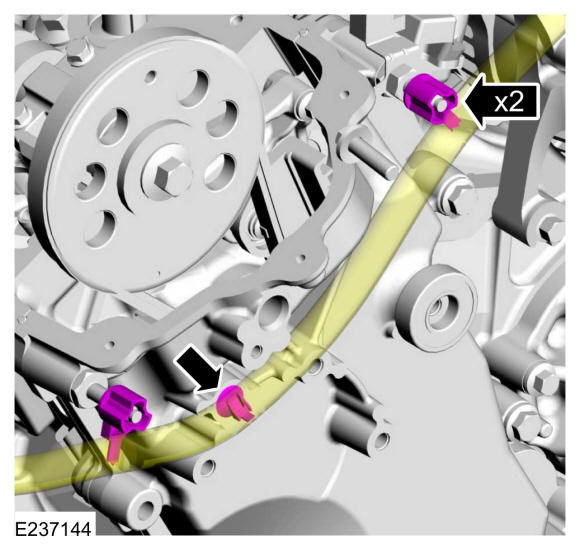

Attach the wiring harness retainers.

Courtesy of FORD MOTOR COMPANY

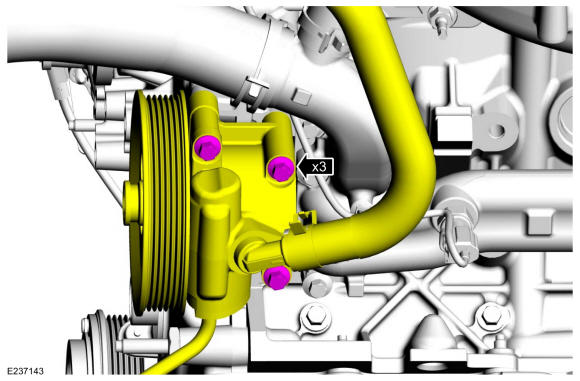

Position the power steering pump assembly and install the new bolts.
Torque: 19 lb.ft (26 Nm)

Courtesy of FORD MOTOR COMPANY

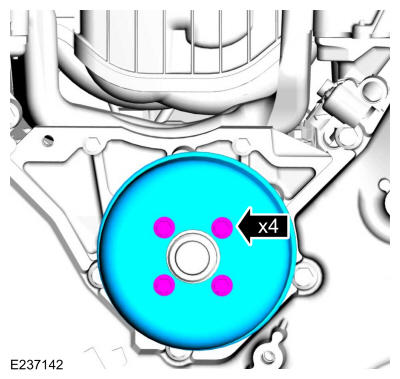

Install the coolant pump pulley and the bolts.
Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
Remove the following items:
1. RH valve cover. Refer to: Valve Cover RH .
2. LH valve cover. Refer to: Valve Cover LH .
3. Crankshaft pulley and front seal. Refer to: Crankshaft Front Seal .
4. CMP sensor. Refer to: Camshaft Position (CMP) Sensor .
5. Accessory drive belt idler pulley. Refer to: Accessory Drive Belt Idler Pulley .
6. Accessory drive belt tensioner. Refer to: Accessory Drive Belt Tensioner .
7. Cooling fan. Refer to: Cooling Fan .

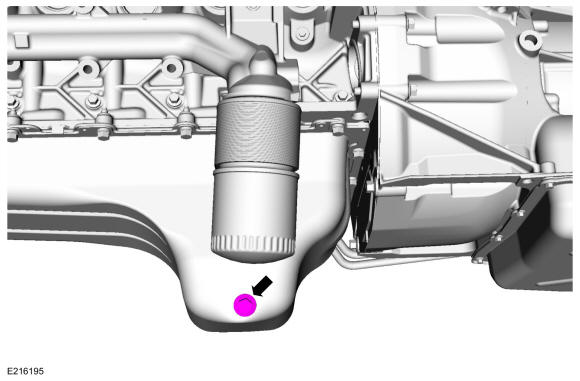

Remove the drain plug, drain engine oil and install drain plug. Use the General Equipment: Oil Drain Equipment
Torque: 17 lb.ft (23 Nm)

Courtesy of FORD MOTOR COMPANY

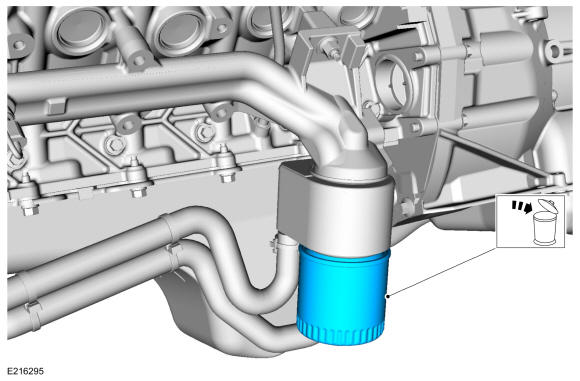

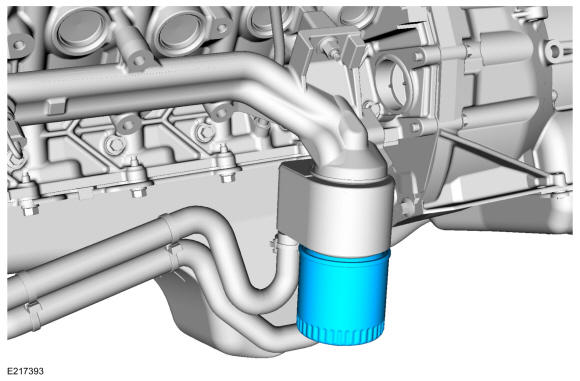

Remove and discard the engine oil filter.

Courtesy of FORD MOTOR COMPANY
Install a new engine oil filter.
Torque: 142 lb.in (16 Nm)

Courtesy of FORD MOTOR COMPANY

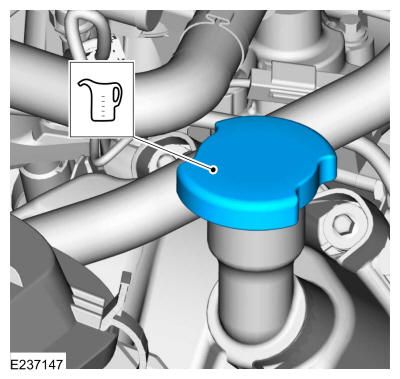

Fill the crankcase with clean engine oil. Refer to: Specifications .

Courtesy of FORD MOTOR COMPANY
