Crankshaft Rear Seal: Installation
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty and 2019 Ford F-450 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
-

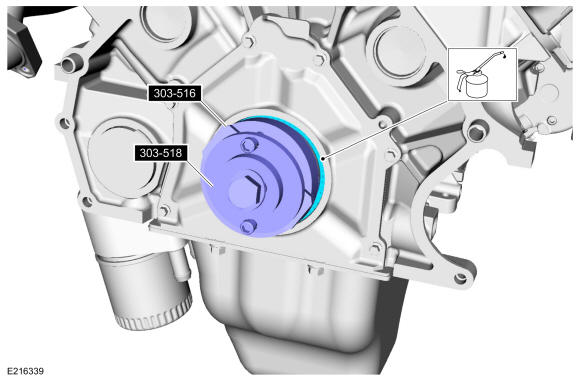

NOTE: Lubricate the crankshaft rear seal with clean engine oil prior to installation.
Using the special tools, install a new crankshaft rear seal. Use Special Service Tool: 303-516 (T95P-6701-BH) Installer, Crankshaft Rear Oil Seal., 303-518 (T95P-6701-DH) Installer, Crankshaft Rear Oil Seal.
-

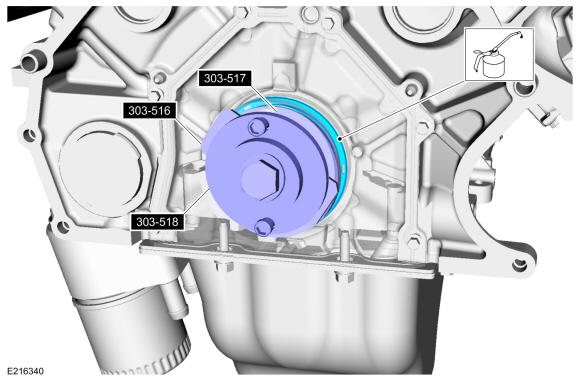

NOTE: Lubricate the crankshaft oil slinger with clean engine oil prior to installation.
Using the special tools, install a new crankshaft oil slinger. Use Special Service Tool: 303-516 (T95P-6701-BH) Installer, Crankshaft Rear Oil Seal., 303-517 (T95P-6701-CH) Installer, Crankshaft Rear Oil Slinger., 303-518 (T95P-6701-DH) Installer, Crankshaft Rear Oil Seal.

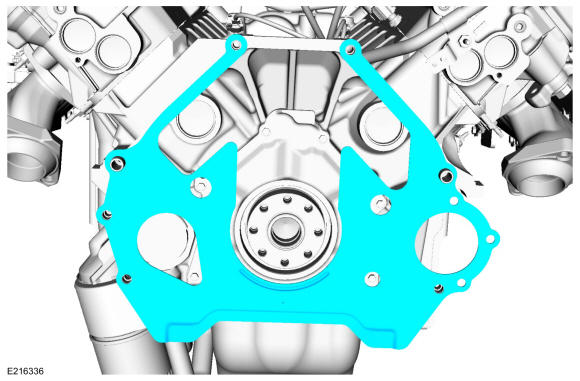

- Install the engine rear cover plate.
- Install the flexplate. Refer to: Flexplate .
