Intake Manifold Assembly: Disassembly

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty and 2019 Ford F-450 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM Color Coding

  1. Remove the throttle body bolts and the throttle body.
    GFD406625Courtesy of FORD MOTOR COMPANY

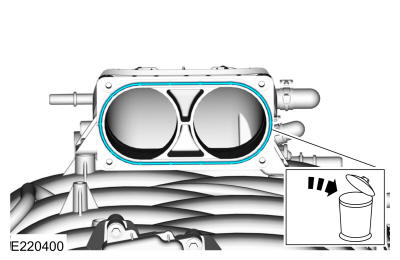

  2. Remove and discard the throttle body gasket.
    GFD406626Courtesy of FORD MOTOR COMPANY

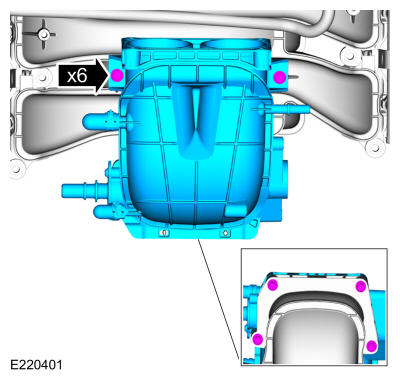

  3. Remove the throttle body spacer bolts and the throttle body spacer.
    GFD406627Courtesy of FORD MOTOR COMPANY

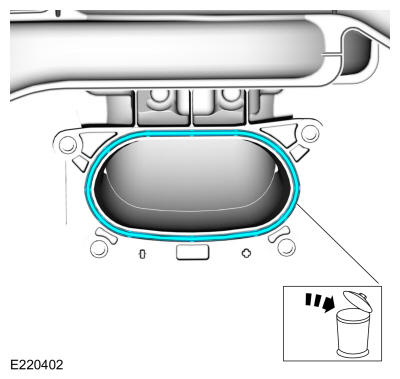

  4. Remove and discard the throttle body spacer gasket.
    GFD406628Courtesy of FORD MOTOR COMPANY
  5. NOTE: The fuel rail and fuel injectors are removed as an assembly.

    • Remove the fuel rail bolts.

    • Remove the fuel rail and fuel injector assembly.

    GFD406629Courtesy of FORD MOTOR COMPANY
  6. Release the fuel injector-to-fuel rail clips, separate the fuel rail from the fuel injectors and then remove the fuel rail.
    GFD406630Courtesy of FORD MOTOR COMPANY
  7. Remove and discard all of the fuel injector O-ring seals.
GFD406631Courtesy of FORD MOTOR COMPANY
