Engine Code Information Labels
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty and 2019 Ford F-450 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

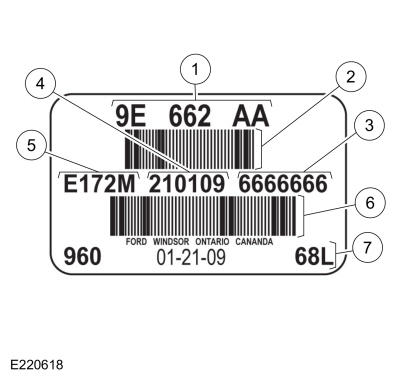

The engine code information label is located on the crankcase ventilation housing and contains the following:
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
Engine part number |
| 2 |
Bar code |
| 3 |
Running number |
| 4 |
Engine build date (DDMMYY) |
| 5 |
Windsor engine plant |
| 6 |
Bar code |
| 7 |
Engine displacement |
