Front Brake Flexible Hose: Removal

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Make sure that all openings are sealed.

NOTE: If the fluid is spilled on the paintwork, the affected area must be immediately washed down with cold water.

NOTE: Removal steps in this procedure may contain installation details.

All vehicles

Remove the wheel and tire. Refer to: Wheel and Tire - Vehicles With: Single Rear Wheels . Refer to: Wheel and Tire - Vehicles With: Dual Rear Wheels .
Remove the bolt and disconnect the brake hose. Discard the washers.
Torque: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY

Vehicles with mono-beam axle
Detach the wheel speed sensor harness retainers.

Courtesy of FORD MOTOR COMPANY

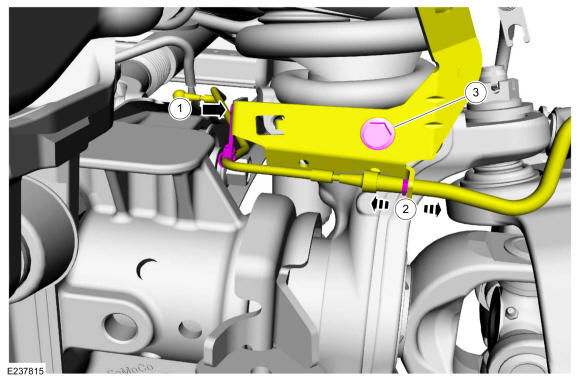

1. Detach the vacuum hose retainer.
2. Separate the vacuum hose.
3. Remove the bolt and position the brake hose bracket aside.
  Torque: 159 lb.in (18 Nm)
Courtesy of FORD MOTOR COMPANY

Vehicles with twin I-Beam axle

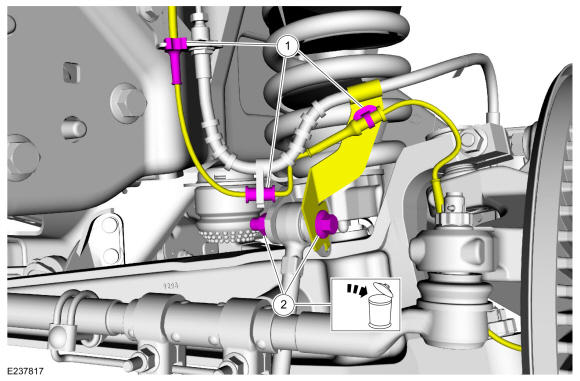

1. Detach the wheel speed sensor harness retainers.
2. Remove and discard the sway bar link upper nut and bolt.
  Torque: 85 lb.ft (115 Nm)
Courtesy of FORD MOTOR COMPANY

All vehicles

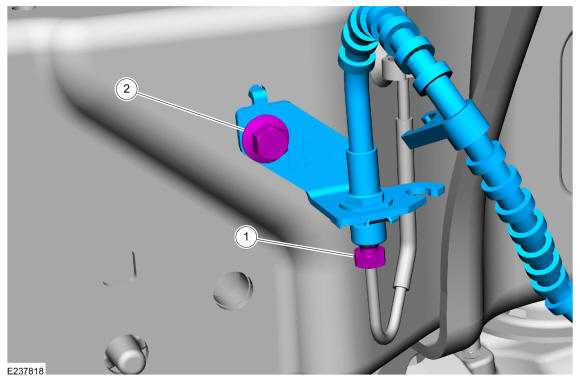

1. Disconnect the brake tube fitting.
  Torque: 18 lb.ft (25 Nm)
2. Remove the bolt and the front brake flexible hose.
  Torque: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY
