Front Brake Caliper Anchor Plate: Removal
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
All vehicles
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the brake pads. Refer to: Brake Pads - F-250/F-350 . Refer to: Brake Pads - F-450/F-550 .

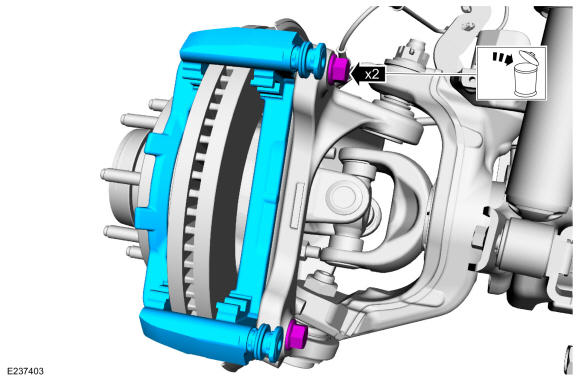

F250, F350
- Remove the bolts and the anchor plate. Discard the bolts
Torque: 203 lb.ft (275 Nm)

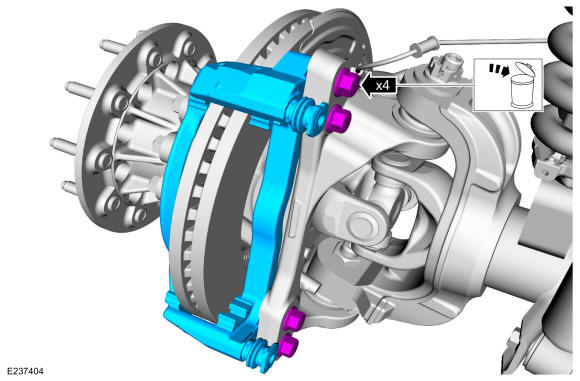

F450, F550
- Remove the bolts and the anchor plate. Discard the bolts
Torque: 166 lb.ft (225 Nm)
