Spark Plug Wires: Removal

WARNING: This page is about a different car, the 2019 Ford F-350 Super Duty and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer toOEM Color Coding

NOTE: Use compressed air to remove any foreign material from the spark plug wires and surrounding area before removing the spark plug wires.

NOTE: When removing the spark plug wires from the spark plugs, a slight twisting motion will break the seal and ease removal.

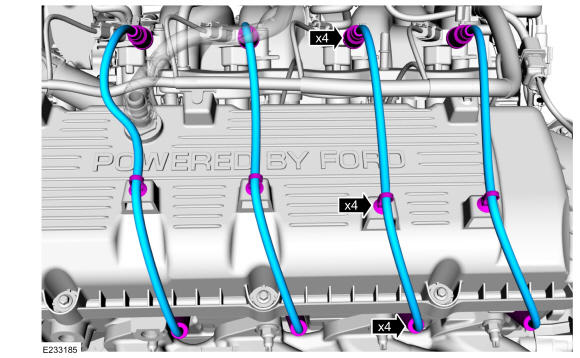

- Detach right the spark plug wire retainers.
- Disconnect and remove the right spark plug wires.
Courtesy of FORD MOTOR COMPANY
NOTE: Use compressed air to remove any foreign material from the spark plug wires and surrounding area before removing the spark plug wires.

NOTE: When removing the spark plug wires from the spark plugs, a slight twisting motion will break the seal and ease removal.

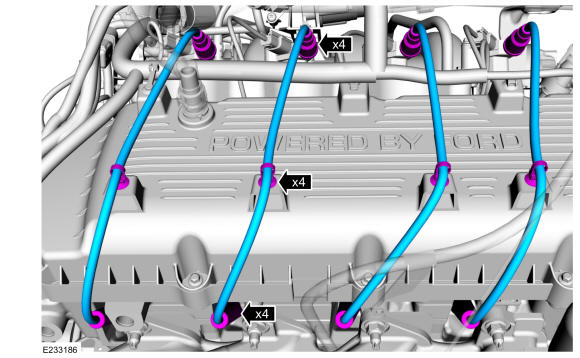

- Detach left the spark plug wire retainers.
- Disconnect and remove the left spark plug wires.

Courtesy of FORD MOTOR COMPANY
