Removal And Installation: Thermostat: Removal
WARNING: This page is about a different car, the 2019 Ford F-350 Super Duty and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM Color Coding
NOTE:
Removal steps in this procedure may contain installation details.
- Drain the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
- Remove the air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe .

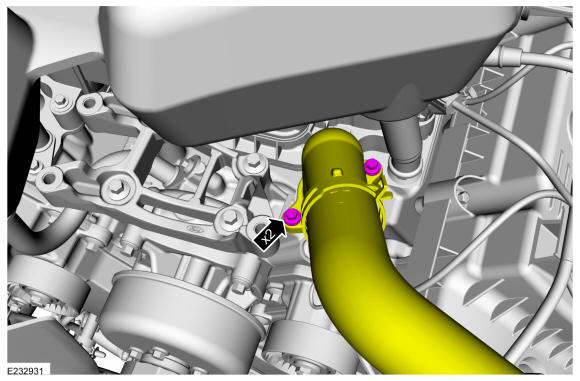

- Remove the bolts and position the coolant outlet connection aside.
Torque: 89 lb.in (10 Nm)

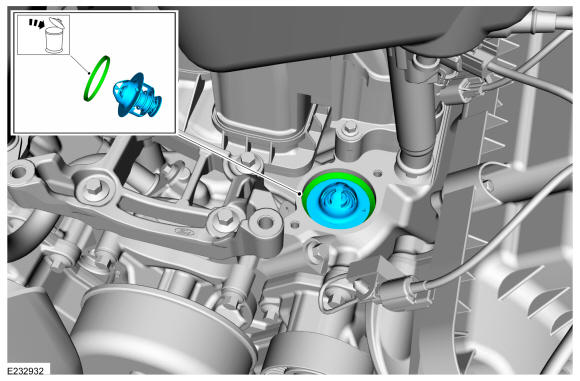

- Remove the thermostat and discard the O-ring seal.
