Cooling Fan: Removal
WARNING: This page is about a different car, the 2019 Ford F-350 Super Duty and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM Color Coding
NOTE:
Removal steps in this procedure may contain installation details.
- The cooling fan is removed in the cooling fan shroud procedure. Refer to: Cooling Fan Shroud .NOTE: This step is only necessary when installing a new component.

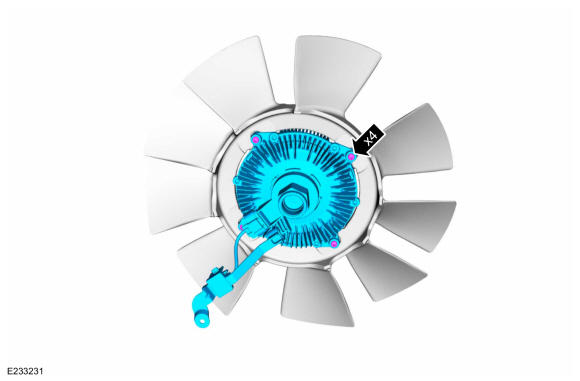

- Remove the bolts and separate the cooling fan from the cooling fan clutch.
Torque: 93 lb.in (10.5 Nm)
