Filling and Bleeding with a Vacuum Cooling System Filler

WARNING: This page is about a different car, the 2019 Ford F-350 Super Duty and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
    • NOTE: The cooling system is filled with Motorcraft® Yellow Antifreeze/Coolant. Do not mix coolant types. Mixing coolant types degrades the corrosion protection of the coolant. Failure to follow these instructions may damage the engine or cooling system.
      NOTE: Engine coolant provides boil protection, corrosion protection, freeze protection, and cooling efficiency to the engine and cooling components. In order to obtain these protections, maintain the engine coolant at the correct concentration and fluid level in the degas bottle.
      NOTE: Add Motorcraft® Yellow Antifreeze/Coolant or equivalent.
      NOTE: Do not add or mix with any other type of engine coolant. Mixing coolants may degrade the coolant's corrosion protection.
      NOTE: Do not add alcohol, methanol, or brine, or any engine coolants mixed with alcohol or methanol antifreeze. These can cause engine damage from overheating or freezing.
      NOTE: Ford Motor Company does NOT recommend the use of recycled engine coolant in vehicles originally equipped with Motorcraft® Yellow Antifreeze/Coolant since a Ford-approved recycling process is not yet available.

      When adding or topping off the engine coolant:

    • Measure the coolant concentration in the vehicle. Use Special Service Tool: ROB75240 Coolant/Battery Refractometer (Fahrenheit).

    • Determine the concentration desired based on the vehicle duty cycle of extreme hot or cold operating conditions.

    • Add, top-off or adjust the coolant as follows:

    • For concentrations measured 48/52 to 50/50 (freeze protection -34 deg.C to -37 deg.C [-30 deg.F to -34 deg.F]) use Motorcraft® Yellow Prediluted Antifreeze/Coolant to maintain a coolant concentration in this same range.

      Material: Motorcraft® Yellow Prediluted Antifreeze/Coolant / VC-13DL-G (WSS-M97B57-A2)

    • For all other concentrations, use Motorcraft® Yellow Concentrated Antifreeze/Coolant and/or distilled water to get to the desired concentration.

      Material: Motorcraft® Yellow Concentrated Antifreeze/Coolant / VC-13-G (WSS-M97B57-A1)

    • When refilling the engine coolant after a flush procedure, use a mixture of Motorcraft® Yellow Concentrated Antifreeze/Coolant and distilled water to get to the desired concentration.

  2. Close the radiator drain valve.
    GFD407499Courtesy of FORD MOTOR COMPANY
  3. Install the vacuum cooling system filler and follow the manufacturer's instructions to fill and bleed the system. Use the General Equipment: Cooling System Vacuum Tester and Refiller
  4. Recommended coolant concentration is 48/52 to 50/50 engine coolant to distilled water (freeze protection -34 deg.C to -37 deg.C [-30 deg.F to -34 deg.F]).
    • For extremely cold climates (less than -37 deg.C [-34 deg.F]):

    • It may be necessary to increase the coolant concentration above 50%.

    • NEVER increase the coolant concentration above 60%.

    • Maximum coolant concentration is 60/40 for cold weather areas.

    • A coolant concentration of 60% provides freeze protection down to -50 deg.C (-58 deg.F)

    • Engine coolant concentrations above 60% will decrease the overheat protection characteristics of the engine coolant and may damage the engine.

    • For extremely hot climates:

    • It is still necessary to maintain the coolant concentration above 40%.

    • NEVER decrease the coolant concentration below 40%.

    • Minimum coolant concentration is 40/60 for warm weather areas.

    • Engine coolant concentrations below 40% will decrease the freeze and corrosion protection characteristics of the engine coolant and may damage the engine.

  7. Vehicles driven year-round in non-extreme climates should use a 48/52 to 50/50 (freeze protection -34 deg.C to -37 deg.C [-30 deg.F to -34 deg.F]) mixture of engine coolant and distilled water for optimum cooling system and engine protection.
    GFD407500Courtesy of FORD MOTOR COMPANY
  8. Fill the degas bottle to the MAX FILL line.
  9. Install the degas bottle cap until it contacts the hard stop.
  10. Turn the climate control system off.
  11. Start the engine and increase the engine speed to 3, 500 rpm and hold for 30 seconds.
  12. Turn the engine off for and wait for 1 minute to purge any large air pockets from the cooling system.
  13. WARNING: Always allow the engine to cool before opening the cooling system. Do not unscrew the coolant pressure relief cap when the engine is operating or the cooling system is hot. The cooling system is under pressure; steam and hot liquid can come out forcefully when the cap is loosened slightly. Failure to follow these instructions may result in serious personal injury.

    Check the engine coolant level in degas bottle and if necessary fill to the top of the MAX FILL line on the degas bottle if the engine is warm or to the top of the MIN FILL LEVEL if the engine is cold.

  14. Start the engine and let it idle until the engine reaches normal operating temperature and the thermostat is fully open. A fully open thermostat is verified by the cooling fan cycling on at least once.
  15. Increase the engine speed to 3, 500 rpm and hold for 30 seconds.
  16. Allow the engine to idle for 30 seconds.
  17. Turn the engine off for 1 minute.
  18. Repeat steps 15 through 17 a total of 10 times to remove any remaining air trapped in the system.
  19. WARNING: Always allow the engine to cool before opening the cooling system. Do not unscrew the coolant pressure relief cap when the engine is operating or the cooling system is hot. The cooling system is under pressure; steam and hot liquid can come out forcefully when the cap is loosened slightly. Failure to follow these instructions may result in serious personal injury.
    NOTE: The coolant should be at room temperature when checking the level.

    Check the engine coolant level in degas bottle and if necessary fill to the top of the MAX FILL line on the degas bottle.

  20. Install the pressure relief cap until it contacts the hard stop.
    GFD407501Courtesy of FORD MOTOR COMPANY

    Filling and Bleeding without a Vacuum Cooling System Filler

    • NOTE: The cooling system is filled with Motorcraft® Yellow Antifreeze/Coolant. Do not mix coolant types. Mixing coolant types degrades the corrosion protection of the coolant. Failure to follow these instructions may damage the engine or cooling system.
      NOTE: Engine coolant provides boil protection, corrosion protection, freeze protection, and cooling efficiency to the engine and cooling components. In order to obtain these protections, maintain the engine coolant at the correct concentration and fluid level in the degas bottle.
      NOTE: Add Motorcraft® Yellow Antifreeze/Coolant or equivalent.
      NOTE: Do not add or mix with any other type of engine coolant. Mixing coolants may degrade the coolant's corrosion protection.
      NOTE: Do not add alcohol, methanol, or brine, or any engine coolants mixed with alcohol or methanol antifreeze. These can cause engine damage from overheating or freezing.
      NOTE: Ford Motor Company does NOT recommend the use of recycled engine coolant in vehicles originally equipped with Motorcraft® Yellow Antifreeze/Coolant since a Ford-approved recycling process is not yet available.

      When adding or topping off the engine coolant:

    • Measure the coolant concentration in the vehicle. Use Special Service Tool: ROB75240 Coolant/Battery Refractometer (Fahrenheit).

    • Determine the concentration desired based on the vehicle duty cycle of extreme hot or cold operating conditions.

    • Add, top-off or adjust the coolant as follows:

    • For concentrations measured 48/52 to 50/50 (freeze protection -34 deg.C to -37 deg.C [-30 deg.F to -34 deg.F]) use Motorcraft® Yellow Prediluted Antifreeze/Coolant to maintain a coolant concentration in this same range.

      Material: Motorcraft® Yellow Prediluted Antifreeze/Coolant / VC-13DL-G (WSS-M97B57-A2)

    • For all other concentrations, use Motorcraft® Yellow Concentrated Antifreeze/Coolant and/or distilled water to get to the desired concentration.

      Material: Motorcraft® Yellow Concentrated Antifreeze/Coolant / VC-13-G (WSS-M97B57-A1)

    • When refilling the engine coolant after a flush procedure, use a mixture of Motorcraft® Yellow Concentrated Antifreeze/Coolant and distilled water to get to the desired concentration.

  22. Close the radiator drain valve.
    GFD407499Courtesy of FORD MOTOR COMPANY
  23. Remove the air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe .

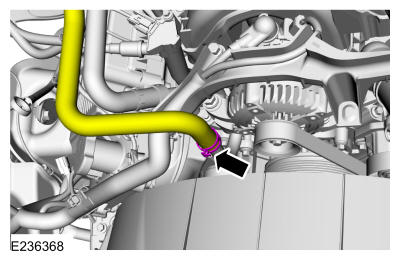

  24. Release the clamp and disconnect the heater hose. Use the General Equipment: Hose Clamp Remover/Installer
    GFD407502Courtesy of FORD MOTOR COMPANY
  25. Fill the degas bottle until engine coolant flows from the heater inlet tube.
  26. Connect the heater hose and install the clamp. Use the General Equipment: Hose Clamp Remover/Installer
    GFD407502Courtesy of FORD MOTOR COMPANY
  27. Install the air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe .
  28. Fill the degas bottle to the MAX FILL line.
  29. Recommended coolant concentration is 48/52 to 50/50 engine coolant to distilled water (freeze protection -34 deg.C to -37 deg.C [-30 deg.F to -34 deg.F]).
    • For extremely cold climates (less than -37 deg.C [-34 deg.F]):

    • It may be necessary to increase the coolant concentration above 50%.

    • NEVER increase the coolant concentration above 60%.

    • Maximum coolant concentration is 60/40 for cold weather areas.

    • A coolant concentration of 60% provides freeze protection down to -50 deg.C (-58 deg.F)

    • Engine coolant concentrations above 60% will decrease the overheat protection characteristics of the engine coolant and may damage the engine.

    • For extremely hot climates:

    • It is still necessary to maintain the coolant concentration above 40%.

    • NEVER decrease the coolant concentration below 40%.

    • Minimum coolant concentration is 40/60 for warm weather areas.

    • Engine coolant concentrations below 40% will decrease the freeze and corrosion protection characteristics of the engine coolant and may damage the engine.

  32. Vehicles driven year-round in non-extreme climates should use a 48/52 to 50/50 (freeze protection -34 deg.C to -37 deg.C [-30 deg.F to -34 deg.F]) mixture of engine coolant and distilled water for optimum cooling system and engine protection.
  33. Install the degas bottle cap until it contacts the hard stop.
  34. Turn the climate control system off.
  35. Start the engine and increase the engine speed to 3, 500 rpm and hold for 30 seconds.
  36. Turn the engine off for and wait for 1 minute to purge any large air pockets from the cooling system.
  37. WARNING: Always allow the engine to cool before opening the cooling system. Do not unscrew the coolant pressure relief cap when the engine is operating or the cooling system is hot. The cooling system is under pressure; steam and hot liquid can come out forcefully when the cap is loosened slightly. Failure to follow these instructions may result in serious personal injury.

    Check the engine coolant level in degas bottle and if necessary fill to the top of the MAX FILL line on the degas bottle if the engine is warm or to the top of the MIN FILL LEVEL if the engine is cold.

  38. Start the engine and let it idle until the engine reaches normal operating temperature and the thermostat is fully open. A fully open thermostat is verified by the cooling fan cycling on at least once.
  39. Increase the engine speed to 3, 500 rpm and hold for 30 seconds.
  40. Allow the engine to idle for 30 seconds.
  41. Turn the engine off for 1 minute.
  42. Repeat steps 39 through 41 a total of 10 times to remove any remaining air trapped in the system.
  43. WARNING: Always allow the engine to cool before opening the cooling system. Do not unscrew the coolant pressure relief cap when the engine is operating or the cooling system is hot. The cooling system is under pressure; steam and hot liquid can come out forcefully when the cap is loosened slightly. Failure to follow these instructions may result in serious personal injury.
    NOTE: The coolant should be at room temperature when checking the level.

    Check the engine coolant level in degas bottle and if necessary fill to the top of the MAX FILL line on the degas bottle.

  44. Install the pressure relief cap until it contacts the hard stop.
GFD407501Courtesy of FORD MOTOR COMPANY
