Engine Cooling - Component Location
WARNING: This page is about a different car, the 2019 Ford F-350 Super Duty and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Coolant temperature will vary with ambient temperature and load. Temperatures shown are for ambient temperature of 38 deg.C (100 deg.F). Red arrows indicate a temperature over 90 deg.C (194 deg.F), Orange arrows indicate a temperature of approximately 90 deg.C (194 deg.F), Blue arrows indicate a temperature below 90 deg.C (194 deg.F).

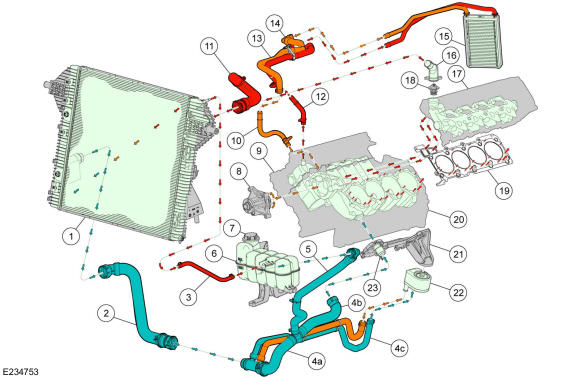

| Item | Description |
|---|---|
| 1 | Radiator |
| 2 | Lower radiator hose |
| 3 | Radiator-to-degas bottle hose |
| 4a | Lower rear radiator hose (to radiator) |
| 4b | Lower rear radiator hose (to engine) |
| 4c | Lower rear radiator hose (to oil cooler) |
| 5 | Lower degas bottle hose |
| 6 | Degas bottle |
| 7 | Pressure relief cap |
| 8 | Coolant pump |
| 9 | Cylinder head RH |
| 10 | Heater outlet hose |
| 11 | Upper radiator hose |
| 12 | Heater inlet hose |
| 13 | Heater hose assembly |
| 14 | Heater outlet hose assembly |
| 15 | Heater core |
| 16 | Coolant outlet connector |
| 17 | Cylinder head LH |
| 18 | Thermostat |
| 19 | Cylinder head gasket LH |
| 20 | Cylinder block |
| 21 | Oil filter adaptor |
| 22 | Engine oil cooler |
| 23 | Oil pressure switch |
