Timing Chain: Removal

WARNING: This page is about a different car, the 2019 Ford F-350 Super Duty and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan, can cause engine failure.

NOTE: In order to remove the LH timing chain, the RH timing chain must be removed first.

NOTE: The RH timing chain can be removed and installed without removing the LH timing chain.

RH and LH timing chains

Remove the engine front cover. Refer to: Engine Front Cover .
Remove the lower spark plugs. Refer to: Spark Plugs .
Install the crankshaft pulley bolt.

Courtesy of FORD MOTOR COMPANY

RH timing chain

NOTE: If removing both the RH and LH timing chains, proceed to Step 12 of this procedure.

NOTE: The following 8 steps cover removal of the RH timing chain only (for servicing the RH cylinder head or cylinder head gasket).
NOTE: Only rotate the engine in a clockwise direction.

Rotate the engine clockwise until the No. 1 intake valve is closed.

Courtesy of FORD MOTOR COMPANY

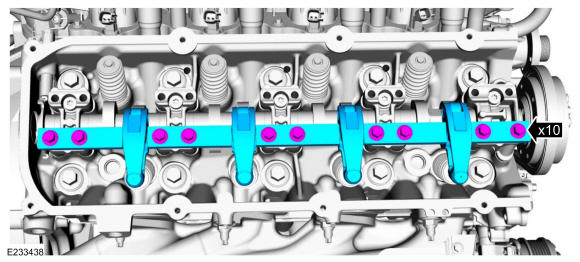

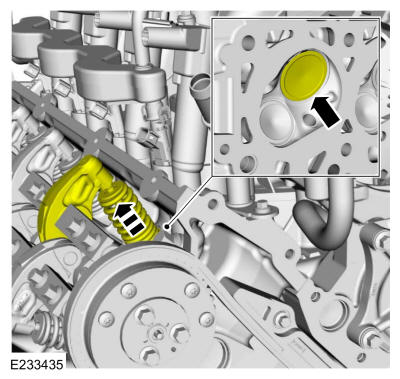

Remove the bolts and the RH intake rocker arm shaft assembly.

Courtesy of FORD MOTOR COMPANY
NOTE: Only rotate the engine in a clockwise direction.

Rotate the engine clockwise until the No. 1 exhaust valve is closed.

Courtesy of FORD MOTOR COMPANY

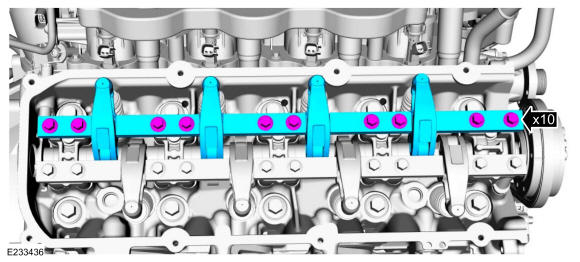

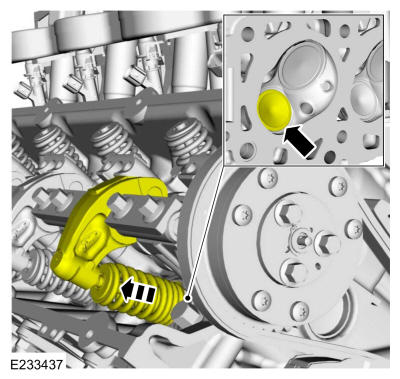

Remove the bolts and the RH exhaust rocker arm shaft assembly.

Courtesy of FORD MOTOR COMPANY
NOTE: Only rotate the engine in a clockwise direction.

Using the crankshaft bolt, rotate the engine in a clockwise direction and position the crankshaft keyway at the 11 o'clock position.

Courtesy of FORD MOTOR COMPANY

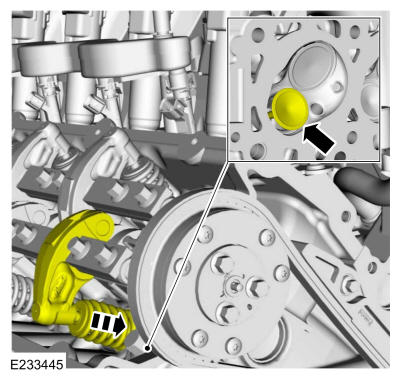

Remove the bolts, the RH primary timing chain tensioner and tensioner arm.

Courtesy of FORD MOTOR COMPANY

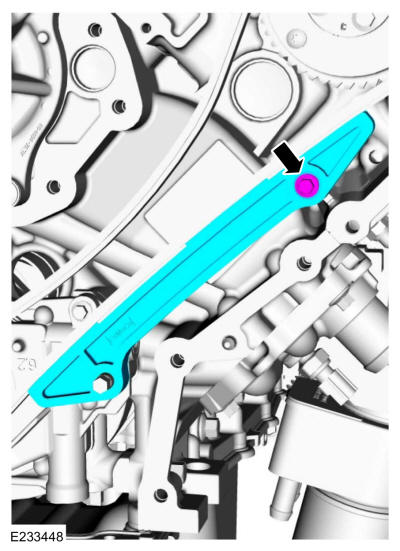

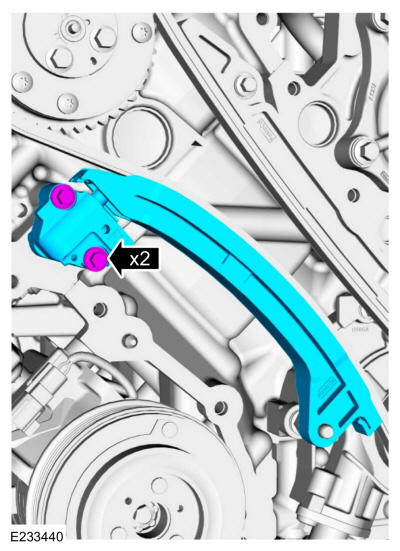

Remove the bolt and the RH timing chain guide.

Courtesy of FORD MOTOR COMPANY

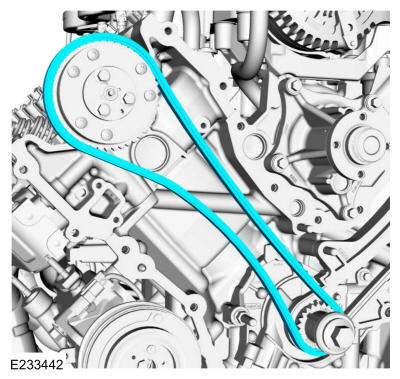

Remove the RH timing chain.

Courtesy of FORD MOTOR COMPANY

RH and LH timing chains
NOTE: Only rotate the engine in a clockwise direction.

Rotate the engine clockwise until the No. 1 intake valve is open.

Courtesy of FORD MOTOR COMPANY

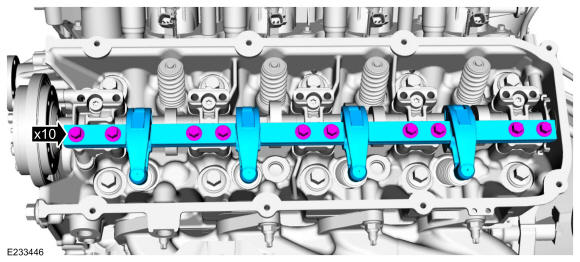

Remove the bolts and the LH intake rocker arm shaft assembly.

Courtesy of FORD MOTOR COMPANY
NOTE: Only rotate the engine in a clockwise direction.

Rotate the engine clockwise until the No. 1 exhaust valve is open.

Courtesy of FORD MOTOR COMPANY

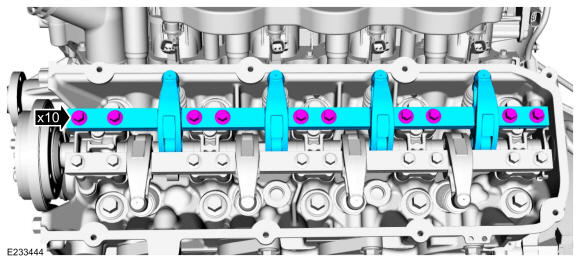

Remove the bolts and the LH exhaust rocker arm shaft assembly.

Courtesy of FORD MOTOR COMPANY
NOTE: Only rotate the engine in a clockwise direction.

Rotate the engine clockwise until the No. 1 intake valve is closed.

Courtesy of FORD MOTOR COMPANY
Remove the bolts and the RH intake rocker arm shaft assembly.

Courtesy of FORD MOTOR COMPANY
NOTE: Only rotate the engine in a clockwise direction.

Rotate the engine clockwise until the No. 1 exhaust valve is closed.

Courtesy of FORD MOTOR COMPANY
Remove the bolts and the RH exhaust rocker arm shaft assembly.

Courtesy of FORD MOTOR COMPANY
Using the crankshaft bolt, rotate the engine in a clockwise direction and position the crankshaft keyway at the 11 o'clock position.

Courtesy of FORD MOTOR COMPANY
Remove the bolts, the RH primary timing chain tensioner and tensioner arm.

Courtesy of FORD MOTOR COMPANY
Remove the bolt and the RH timing chain guide.

Courtesy of FORD MOTOR COMPANY
Remove the RH timing chain.

Courtesy of FORD MOTOR COMPANY

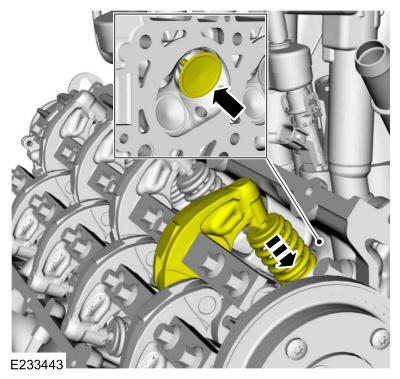

Remove the bolts, the LH primary timing chain tensioner and tensioner arm.

Courtesy of FORD MOTOR COMPANY

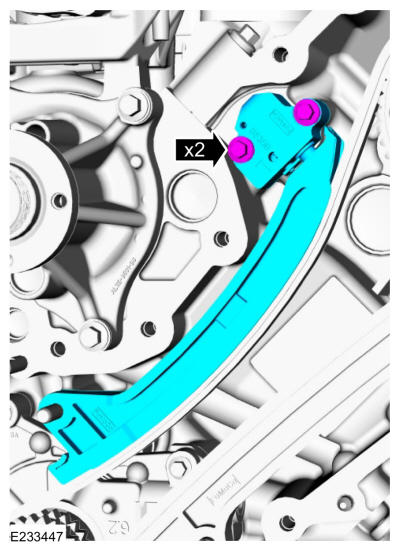

Remove the bolt and the LH timing chain guide.

Courtesy of FORD MOTOR COMPANY

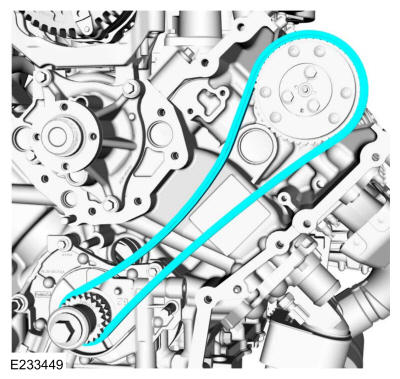

Remove the LH timing chain.

Courtesy of FORD MOTOR COMPANY
