Timing Chain: Installation

WARNING: This page is about a different car, the 2019 Ford F-350 Super Duty and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

RH and LH timing chains

NOTE: Timing chain procedures must be followed exactly or damage to valves and pistons will result.

Using a small pick, carefully push the LH tensioner rack pawl retainer away from the rack pawl and compress the tensioner plunger and rack using a vise.. Use the General Equipment: Vise

Courtesy of FORD MOTOR COMPANY
- Install a retaining clip into the tensioner to hold the rack pawl and plunger in the seated position for tensioner installation.
- Remove the LH tensioner from the vise.
Courtesy of FORD MOTOR COMPANY
If the copper links are not visible, mark the links on each end, and use as timing marks.

Courtesy of FORD MOTOR COMPANY
NOTE: Verify the crankshaft keyway is at the 11 o'clock position.

NOTE: Make sure the upper half of the timing chain is below the tensioner arm dowel and above the chain guide pin.

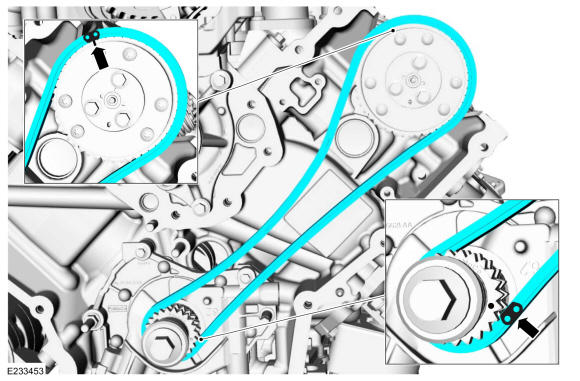

Install the LH timing chain.
- Align the colored link on the timing chain with the timing mark on the LH VCT assembly.
- Align the colored link on the timing chain with the timing mark on the crankshaft sprocket.
Courtesy of FORD MOTOR COMPANY
Install the LH timing chain tensioner arm.

Courtesy of FORD MOTOR COMPANY
Install the LH primary timing chain tensioner and bolts.
Torque: Stage 1: 89 lb.in (10 Nm) | Stage 2: 45 deg.

Courtesy of FORD MOTOR COMPANY

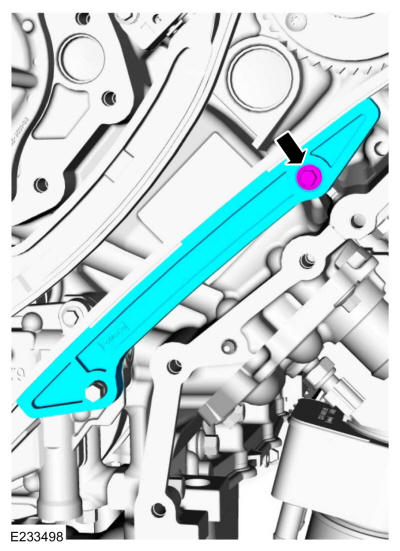

Install the LH timing chain guide and the bolt.
Torque: Stage 1: 89 lb.in (10 Nm) | Stage 2: 45 deg.

Courtesy of FORD MOTOR COMPANY
Remove the retaining clip from the LH timing chain tensioner.

Courtesy of FORD MOTOR COMPANY
Using a small pick, carefully push the RH tensioner rack pawl retainer away from the rack pawl and compress the tensioner plunger and rack using a vise.. Use the General Equipment: Vise

Courtesy of FORD MOTOR COMPANY

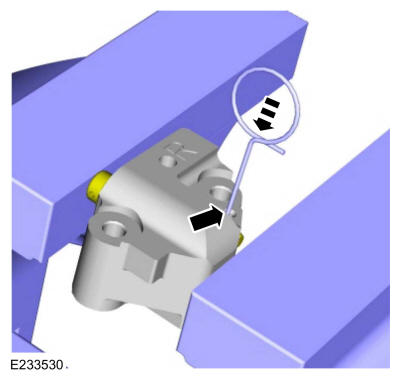

- Install a retaining clip into the tensioner to hold the rack pawl and plunger in the seated position for tensioner installation.
- Remove the RH tensioner from the vise.
Courtesy of FORD MOTOR COMPANY
If the copper links are not visible, mark the links on each end, and use as timing marks.

Courtesy of FORD MOTOR COMPANY
NOTE: Verify the crankshaft keyway is at the 11 o'clock position.

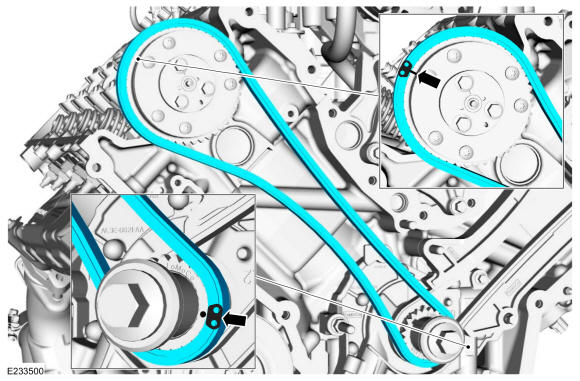

Install the RH timing chain.
- Align the colored link on the timing chain with the timing mark on the crankshaft sprocket.
- Align the colored link on the timing chain with the timing mark on the RH VCT assembly.
Courtesy of FORD MOTOR COMPANY

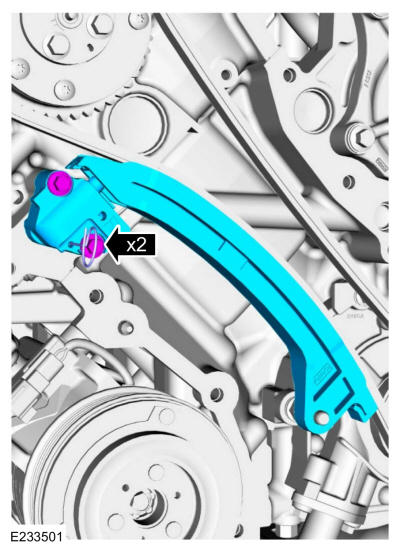

Position the RH timing chain tensioner arm on the dowel pin and install the RH timing chain tensioner and the bolts.
Torque: Stage 1: 89 lb.in (10 Nm) | Stage 2: 45 deg.

Courtesy of FORD MOTOR COMPANY

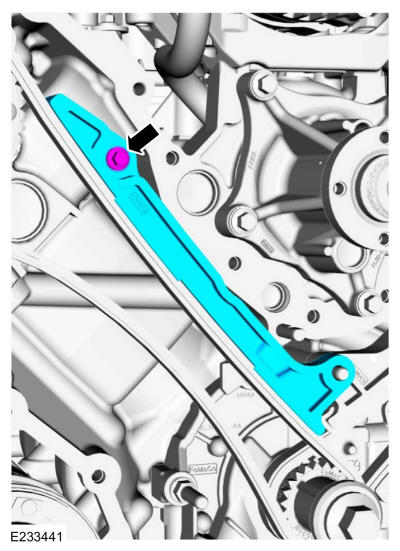

Install the RH timing chain guide and bolt.
Torque: Stage 1: 89 lb.in (10 Nm) | Stage 2: 45 deg.

Courtesy of FORD MOTOR COMPANY
Remove the retaining clip from the RH timing chain tensioner.

Courtesy of FORD MOTOR COMPANY

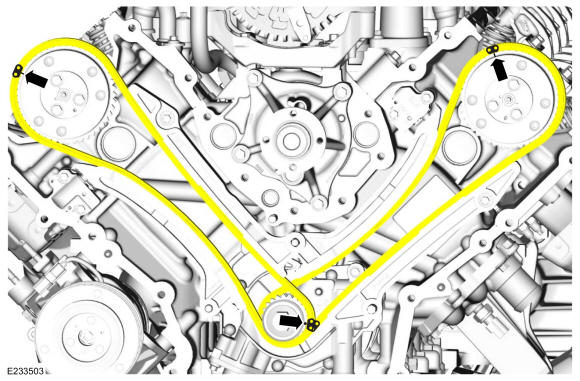

As a post-check, verify correct alignment of all timing marks.

Courtesy of FORD MOTOR COMPANY

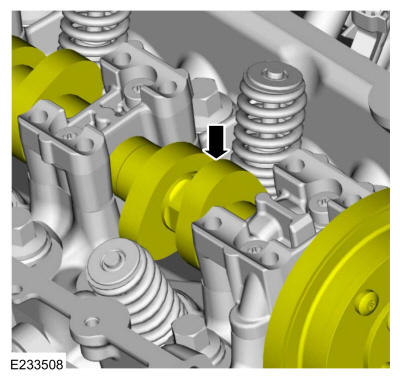

- Rotate the engine clockwise until the No. 1 cylinder camshaft intake lobe is positioned so that the intake valve would be fully opened.
- Lubricate the all RH camshaft lopes with clean engine oil.
Courtesy of FORD MOTOR COMPANY
NOTE: LH shown, RH similar.

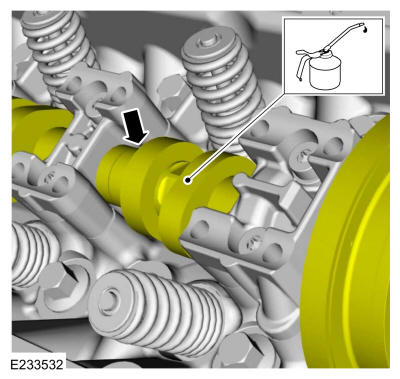

Lubricate the LH and RH rocker arm shaft-to-valve tip and rocker arm-to-camshaft lobe contact area with clean engine oil prior to installation.

Courtesy of FORD MOTOR COMPANY

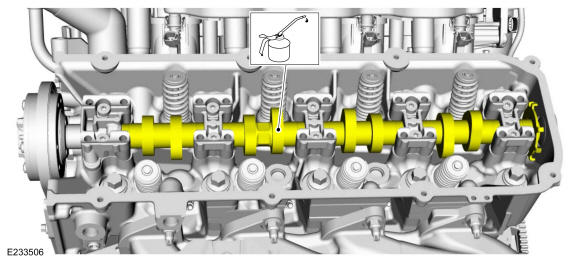

Lubricate the all LH camshaft lopes with clean engine oil.

Courtesy of FORD MOTOR COMPANY

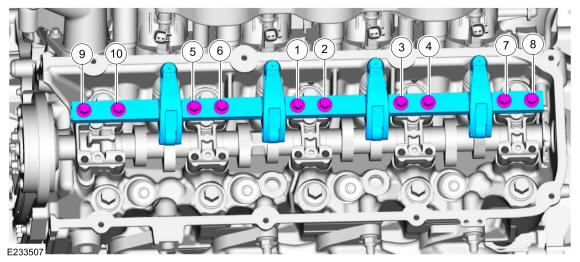

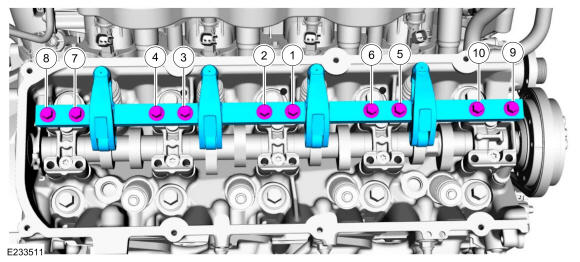

Install the LH intake rocker arm shaft assembly and the bolts finger-tight and tighten the bolts sequence shown, in 3 stages.
Torque: Stage 1: 89 lb.in (10 Nm) | Stage 2: 177 lb.in (20 Nm) | Stage 3: 60 deg.

Courtesy of FORD MOTOR COMPANY
Rotate the engine clockwise until the No. 1 cylinder camshaft exhaust lobe is positioned so that the exhaust valve would be fully opened.

Courtesy of FORD MOTOR COMPANY

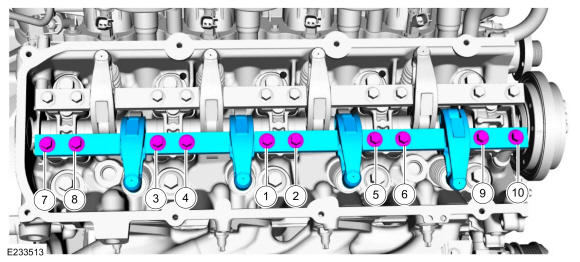

Install the LH exhaust rocker arm shaft assembly and the bolts finger-tight and tighten the bolts sequence shown, in 3 stages.
Torque: Stage 1: 89 lb.in (10 Nm) | Stage 2: 177 lb.in (20 Nm) | Stage 3: 60 deg.

Courtesy of FORD MOTOR COMPANY
Rotate the engine clockwise until the No. 1 cylinder camshaft intake lobe is positioned so that the intake valve would be fully closed.

Courtesy of FORD MOTOR COMPANY

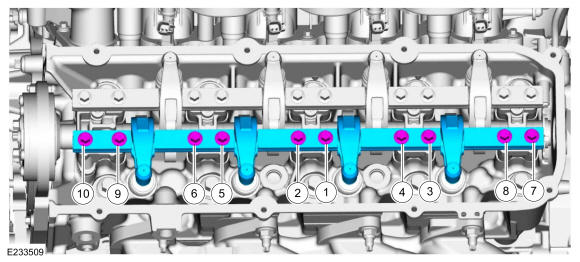

Install the RH intake rocker arm shaft assembly and the bolts finger-tight and tighten the bolts sequence shown, in 3 stages.
Torque: Stage 1: 89 lb.in (10 Nm) | Stage 2: 177 lb.in (20 Nm) | Stage 3: 60 deg.

Courtesy of FORD MOTOR COMPANY
Rotate the engine clockwise until the No. 1 cylinder camshaft exhaust lobe is positioned so that the exhaust valve would be fully closed.

Courtesy of FORD MOTOR COMPANY
Install the RH exhaust rocker arm shaft assembly and the bolts finger-tight and tighten the bolts sequence shown, in 3 stages.
Torque: Stage 1: 89 lb.in (10 Nm) | Stage 2: 177 lb.in (20 Nm) | Stage 3: 60 deg.

Courtesy of FORD MOTOR COMPANY

RH timing chain

NOTE: The following 13 steps cover installation of the RH timing chain only (when the RH timing chain was the only side removed).
Using a small pick, carefully push the RH tensioner rack pawl retainer away from the rack pawl and compress the tensioner plunger and rack using a vise.. Use the General Equipment: Vise

Courtesy of FORD MOTOR COMPANY
- Install a retaining clip into the tensioner to hold the rack pawl and plunger in the seated position for tensioner installation.
- Remove the RH tensioner from the vise.
Courtesy of FORD MOTOR COMPANY
If the copper links are not visible, mark 2 links on each end, and use as timing marks.

Courtesy of FORD MOTOR COMPANY
NOTE: Verify the crankshaft keyway is at the 11 o'clock position.

NOTE: The LH timing chain does not need to be aligned with the LH timing marks to install the RH timing chain.

Install the RH timing chain.
- Align the colored link on the timing chain with the timing mark on the crankshaft sprocket.
- Align the colored link on the timing chain with the timing mark on the RH VCT assembly.
Courtesy of FORD MOTOR COMPANY
Position the RH timing chain tensioner arm on the dowel pin and install the RH timing chain tensioner and the bolts.
Torque: Stage 1: 89 lb.in (10 Nm) | Stage 2: 45 deg.

Courtesy of FORD MOTOR COMPANY
Install the RH timing chain guide and bolt.
Torque: Stage 1: 89 lb.in (10 Nm) | Stage 2: 45 deg.

Courtesy of FORD MOTOR COMPANY
Remove the retaining clip from the RH timing chain tensioner.

Courtesy of FORD MOTOR COMPANY
NOTE: The LH timing chain does not need to be aligned with the LH timing marks to install the RH timing chain.

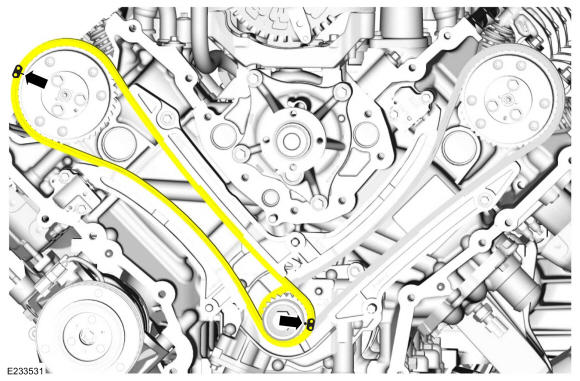

As a post-check, verify correct alignment of the RH timing marks.

Courtesy of FORD MOTOR COMPANY
Lubricate the RH rocker arm shaft-to-valve tip and rocker arm-to-camshaft lobe contact area with clean engine oil prior to installation.

Courtesy of FORD MOTOR COMPANY
- Rotate the engine clockwise until the No. 1 cylinder camshaft intake lobe is positioned so that the intake valve would be fully closed.
- Lubricate the all RH camshaft lopes with clean engine oil.
Courtesy of FORD MOTOR COMPANY
Install the RH intake rocker arm shaft assembly and the bolts finger-tight and tighten the bolts sequence shown, in 3 stages.
Torque: Stage 1: 89 lb.in (10 Nm) | Stage 2: 177 lb.in (20 Nm) | Stage 3: 60 deg.

Courtesy of FORD MOTOR COMPANY
Rotate the engine clockwise until the No. 1 cylinder camshaft exhaust lobe is positioned so that the exhaust valve would be fully closed.

Courtesy of FORD MOTOR COMPANY
Install the RH exhaust rocker arm shaft assembly and the bolts finger-tight and tighten the bolts sequence shown, in 3 stages.
Torque: Stage 1: 89 lb.in (10 Nm) | Stage 2: 177 lb.in (20 Nm) | Stage 3: 60 deg.

Courtesy of FORD MOTOR COMPANY

RH and LH timing chains

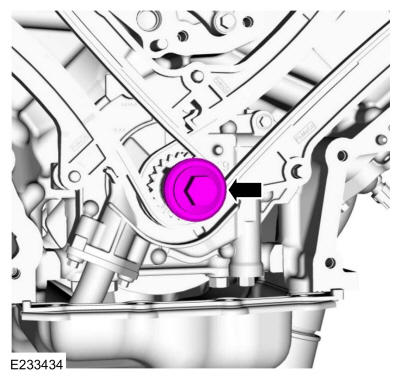

Remove the crankshaft bolt.

Courtesy of FORD MOTOR COMPANY
Install the lower spark plugs. Refer to: Spark Plugs .
Install the engine front cover. Refer to: Engine Front Cover .
