Rocker Arm LH: Removal

WARNING: This page is about a different car, the 2019 Ford F-350 Super Duty and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan, can cause engine failure.

All rocker arms

Remove the LH valve cover. Refer to: Valve Cover LH .
Intake rocker arms
NOTE: Only rotate the engine in a clockwise direction.

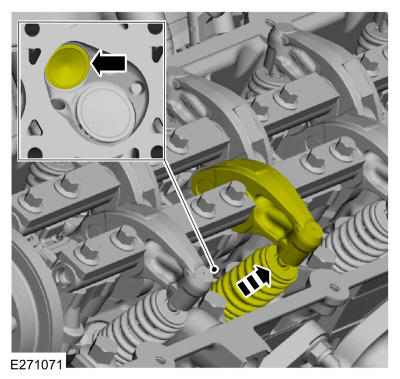

Using the crankshaft pulley bolt, rotate the engine clockwise until the cylinder No. 6 intake valve is closed.

Courtesy of FORD MOTOR COMPANY

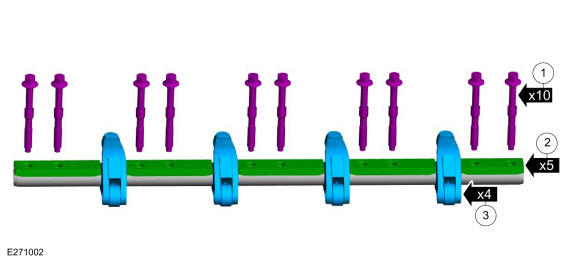

Remove the bolts and the LH intake rocker arm shaft assembly.

Courtesy of FORD MOTOR COMPANY

Exhaust rocker arms
NOTE: Only rotate the engine in a clockwise direction.

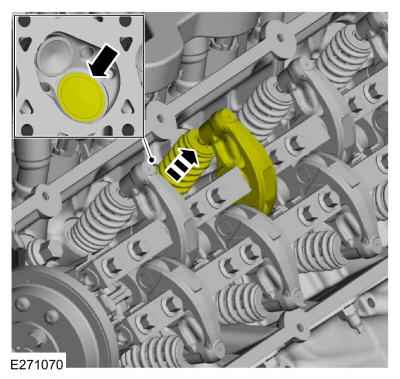

Using the crankshaft pulley bolt, rotate the engine clockwise until the cylinder No. 6 exhaust valve is closed.

Courtesy of FORD MOTOR COMPANY

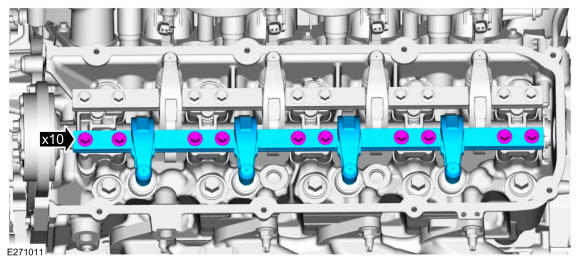

Remove the bolts and the LH exhaust rocker arm shaft assembly.

Courtesy of FORD MOTOR COMPANY

All rocker arms
1. NOTE: The sleeves are captured on the bolts.

  Using a hammer, tap the bolts to release the sleeve out of the rocker arm shaft.
2. Remove the rocker arm shaft plates.
3. Slide the rocker arms off the shaft.
