Rocker Arm LH: Installation

WARNING: This page is about a different car, the 2019 Ford F-350 Super Duty and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

All rocker arms

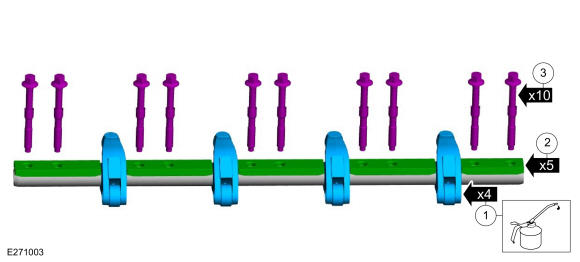

1. NOTE: Lubricate the rocker arm and shaft with clean engine oil.

  Slide the rocker arms on the shaft.
2. Install the rocker arm shaft plates.
3. NOTE: The sleeves are captured on the bolts.

  Using a hammer, tap the bolts to seat the sleeve in the rocker arm shaft.
Courtesy of FORD MOTOR COMPANY
Lubricate the rocker arm shaft-to-valve tip and rocker arm-to-camshaft lobe contact area with clean engine oil prior to installation.

Courtesy of FORD MOTOR COMPANY
Lubricate the all LH camshaft lopes with clean engine oil.

Courtesy of FORD MOTOR COMPANY

Exhaust rocker arms
NOTE: Only rotate the engine in a clockwise direction.

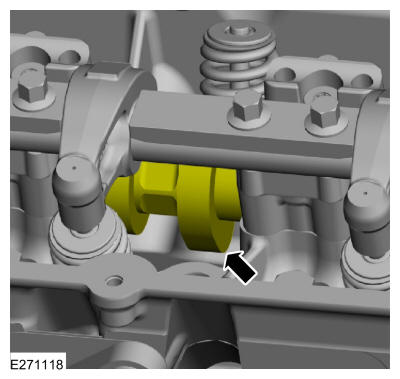

If needed, rotate the engine clockwise until the No. 6 cylinder camshaft exhaust lobe is positioned so the exhaust valve would be fully closed.

Courtesy of FORD MOTOR COMPANY
Install the LH exhaust rocker arm shaft assembly and the bolts finger-tight and tighten the bolts sequence shown, in 3 stages.
Torque: Stage 1: 89 lb.in (10 Nm) | Stage 2: 177 lb.in (20 Nm) | Stage 3: 60 deg.

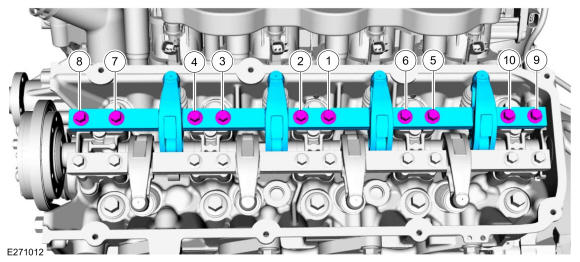

Fig 1: LH Exhaust Rocker Shaft Assembly Bolts Tightening Sequence
Courtesy of FORD MOTOR COMPANY

Intake rocker arms
NOTE: Only rotate the engine in a clockwise direction.

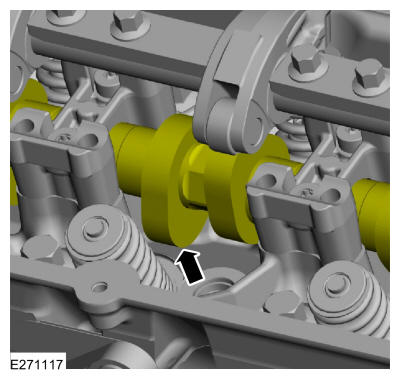

If needed, rotate the engine clockwise until the No. 6 cylinder camshaft intake lobe is positioned at the bottom of its rotation so the intake valve would be fully closed.

Courtesy of FORD MOTOR COMPANY
Install the LH intake rocker arm shaft assembly and the bolts finger-tight and tighten the bolts sequence shown, in 3 stages.
Torque: Stage 1: 89 lb.in (10 Nm) | Stage 2: 177 lb.in (20 Nm) | Stage 3: 60 deg.

Fig 2: LH Intake Rocker Arm Shaft Assembly Bolts Tightening Sequence
Courtesy of FORD MOTOR COMPANY

All rocker arms
Install the LH valve cover. Refer to: Valve Cover LH .
