Oil Pressure Switch: Removal

WARNING: This page is about a different car, the 2019 Ford F-350 Super Duty and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan, can cause engine failure.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

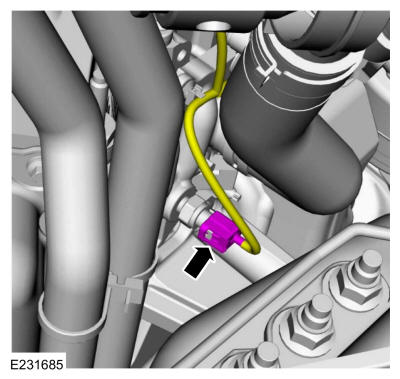

Disconnect the oil pressure switch electrical connector.

Courtesy of FORD MOTOR COMPANY

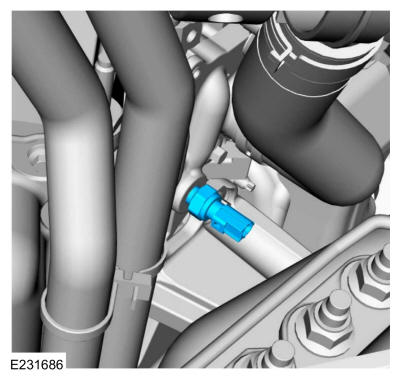

Remove the oil pressure switch.
Torque: Stage 1: 124 lb.in (14 Nm) | Stage 2: 180 deg.

Courtesy of FORD MOTOR COMPANY
