Removal And Installation: Flywheel: Removal

WARNING: This page is about a different car, the 2019 Ford F-350 Super Duty and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the clutch disc and pressure plate. Refer to: the appropriate Service Information .

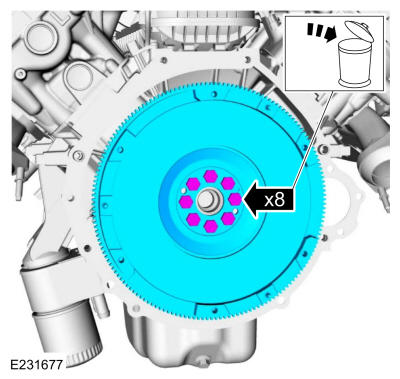

  2. NOTE: The flywheel bolts are torque-to-yield design and are not reusable.

    • Remove the bolts and the flywheel.

    • Discard the bolts.

GFD405761Courtesy of FORD MOTOR COMPANY
