Removal And Installation: Flywheel: Installation
WARNING: This page is about a different car, the 2019 Ford F-350 Super Duty and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
-
- Install the flexplate and the new bolts finger-tight.

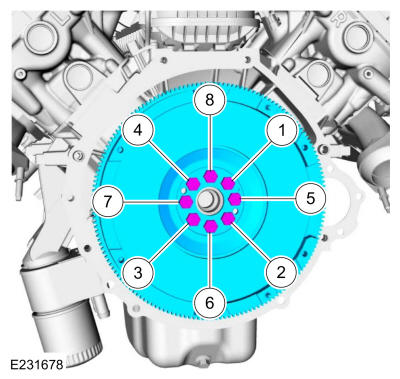

- Tighten the bolts in sequence shown in 6 stages.
Torque: Stage 1: Tighten fasteners 1 through 4 in sequence to: 177 lb.in (20 Nm) | Stage 2: Tighten fasteners 1 through 4 in sequence to: 26 lb.ft (35 Nm) | Stage 3: Tighten fasteners 1 through 4 in sequence an additional: 60 deg. | Stage 4: Tighten fasteners 5 through 8 in sequence to: 177 lb.in (20 Nm) | Stage 5: Tighten fasteners 5 through 8 in sequence to: 26 lb.ft (35 Nm) | Stage 6: Tighten fasteners 5 through 8 in sequence an additional: 60 deg.
- Install the clutch disc and pressure plate. Refer to: the appropriate Service Information .
- Use the Powertrain Control Module (PCM) Misfire Monitor Profile Correction routine in the diagnostic scan tool.
