Removal And Installation: Flexplate: Removal
WARNING: This page is about a different car, the 2019 Ford F-350 Super Duty and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
-
NOTE: It is not necessary to remove the transmission from the jack.
Remove the automatic transmission. Refer to: Transmission . Refer to: Transmission .

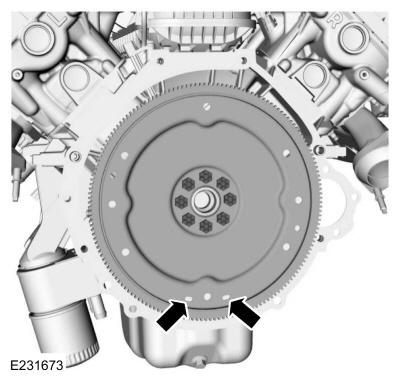

- Rotate the engine clockwise until the slotted holes on the flexplate are at the 6 o'clock position as shown.
-

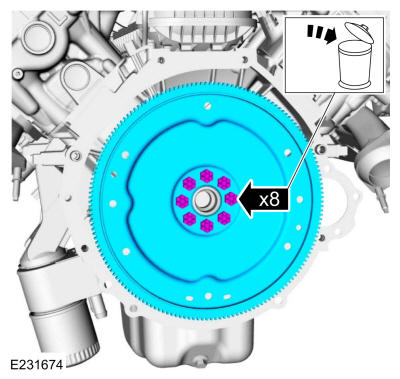

- Remove the 8 bolts and the flexplate.
- Discard the 8 flexplate bolts.
